A split homecare bed still sits too high when the care plan wants the deck near the floor. The Drive Prime P503 Full-Electric Hi-Low Bed Package is Drive's PrimeCare P503 long-term-care low bed. Height travels 7.8-30 inches with true vertical lift. Width is 35 inches, not an expandable 36-42 inch P903.
If they need a low long-term-care bed rather than a Delta split frame, this is the Drive Prime P503 Full-Electric Hi-Low Bed Package. Three DC motors keep the deck level. Length extends 76-80 inches. This listing is a package page: bed only or mattress and assist-rail options. Bed ends are options.

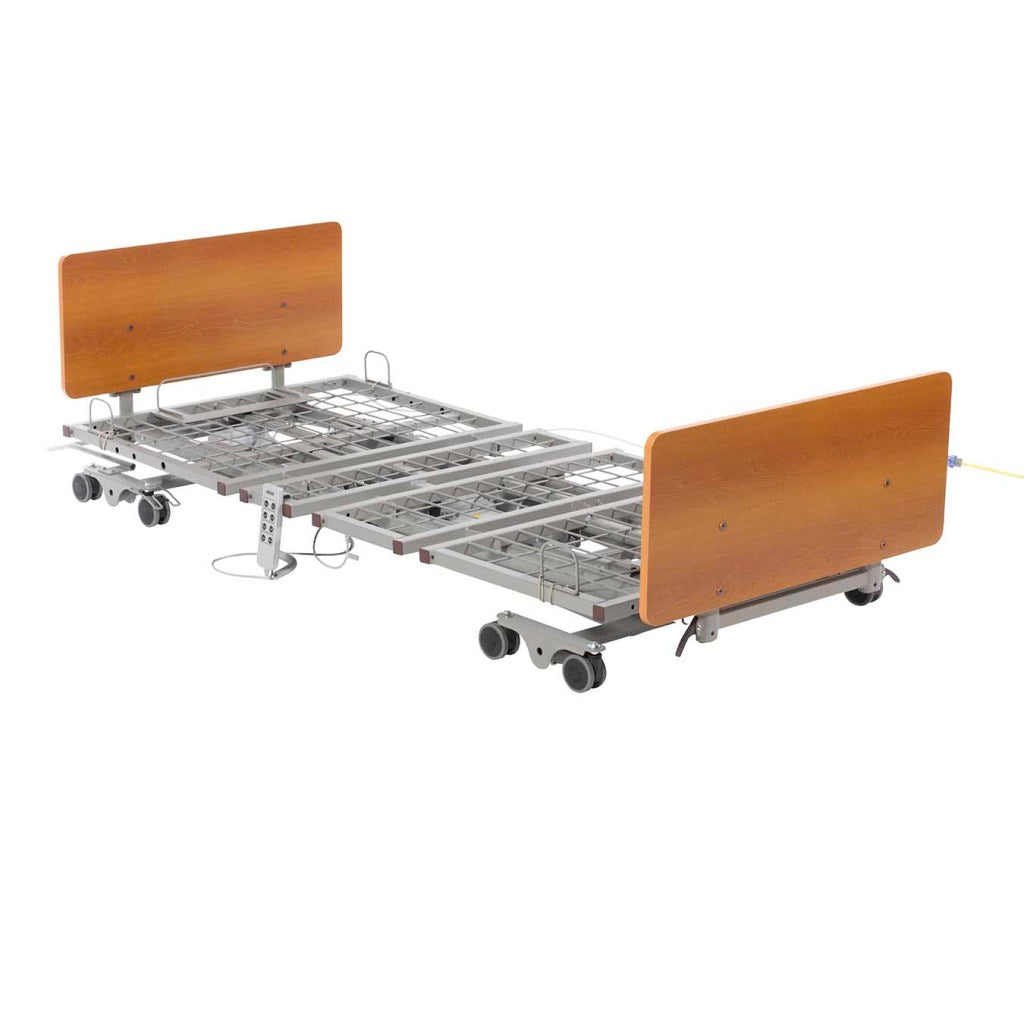

True vertical lift runs 7.8-30 inches. That is a different class from a Delta or MedLite homecare height range.

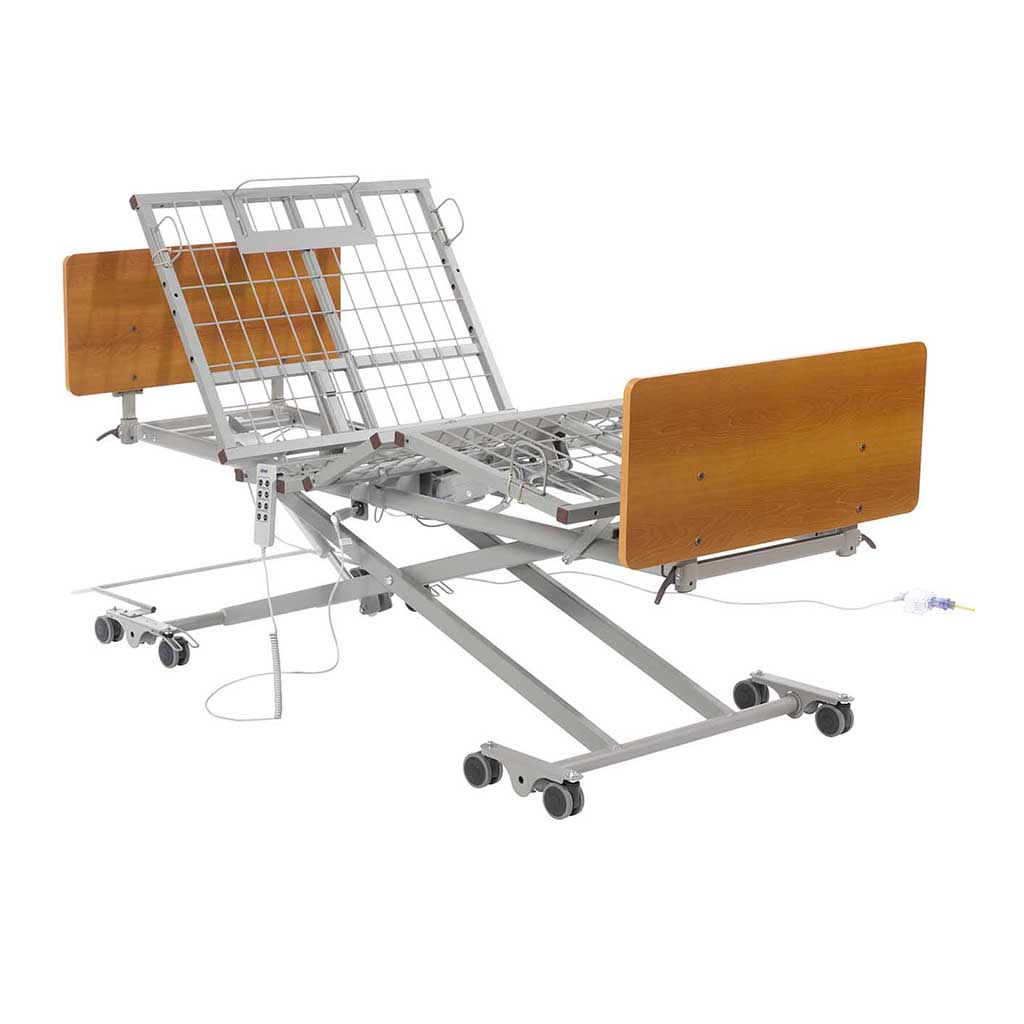

Head and knee can move together. Three DC motors keep the surface level as the bed rises.

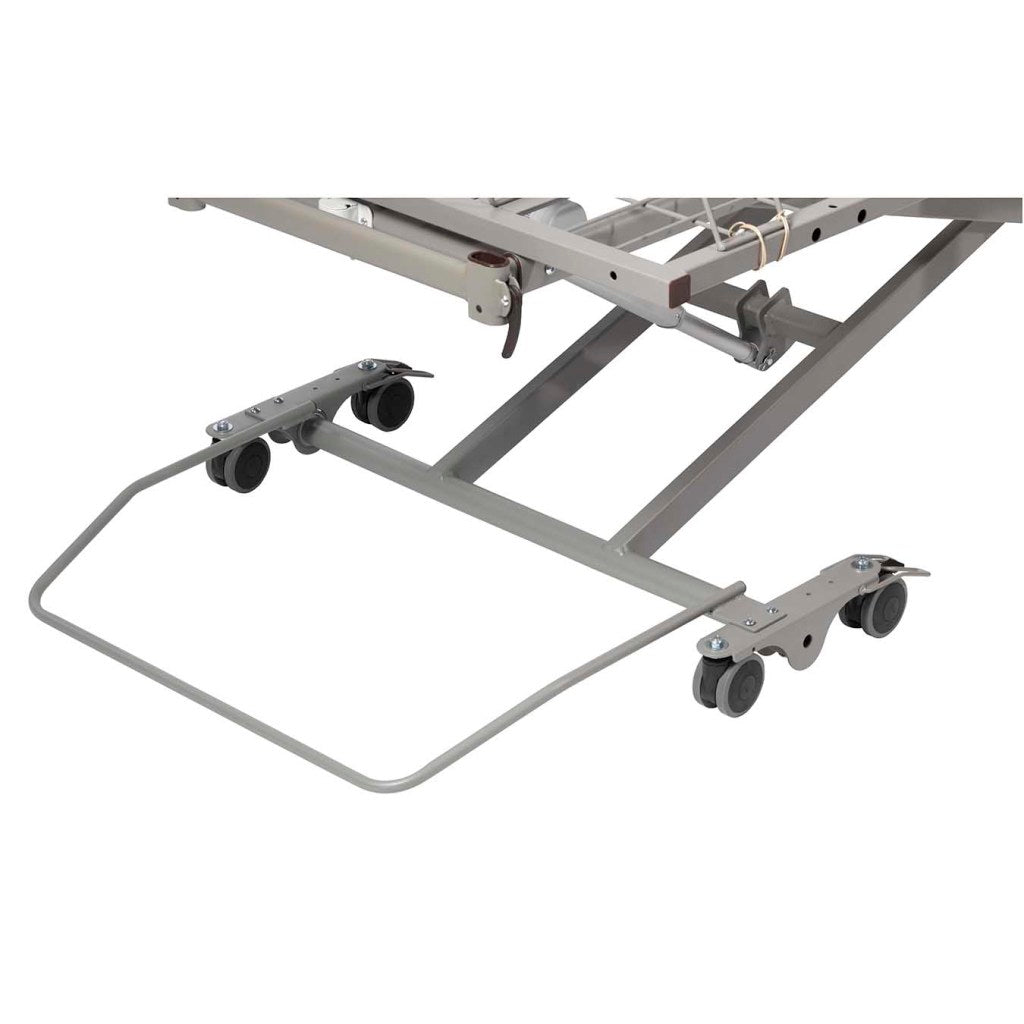

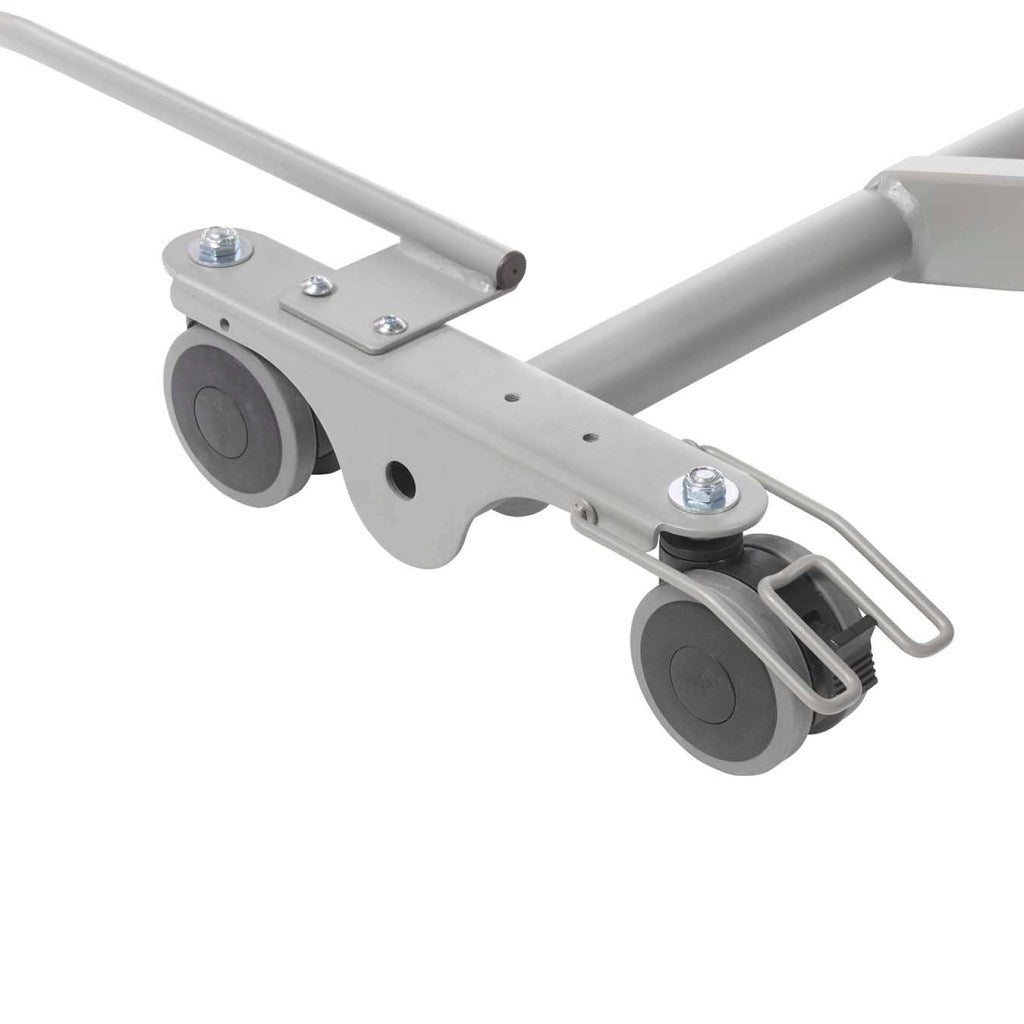

Eight 3 inch casters. Four lock, two are guide locks, and a wall bumper is fixed. Confirm the path before you move it.
Length extension is built in. Width stays 35 inches. If you need 36-42 inch push-button width, that is the P903.
This page includes bed-only plus 5-zone, Gravity 7, and Dynamic packages with assist bar or rail choices. Not every combination is in stock.
The P503 is for a home or care setting that wants a 35 inch low bed with 7.8-30 inch travel. It is a weaker fit if they need 600 lb, a 42 inch deck, or a simple split-spring Delta.
Choose the P903 if width must expand to 42 inches. Choose a Delta 15033 if a lighter homecare split frame is enough.
P503 is the 35 inch 450 lb low bed. P903 expands 36-42 inches and lists a 600 lb load. Delta is a split homecare bed, not a true-vertical-lift Prime.
| Specification | Detail |
|---|---|
| Weight Capacity | 450 lb; resident weight 425 lb |
| Unit Weight | 210 lb |
| Brand | Drive DeVilbiss |
| Model | PrimeCare P503 |
| Type | Full-electric long-term-care low bed |
| Bed Width | 35" |
| Bed Length | 76"-80" integrated extension |
| Height Range | 7.8"-30" true vertical lift |
| Motors | Three DC motors |

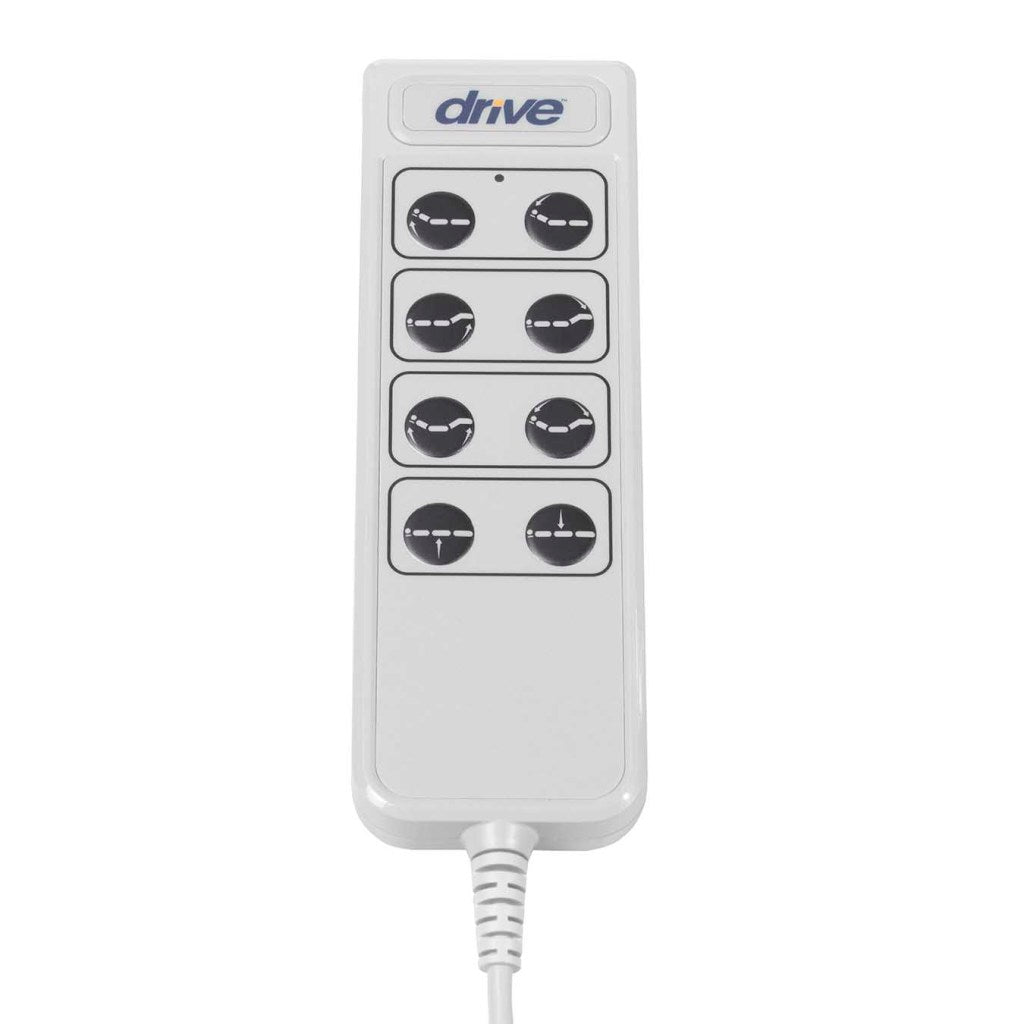

| Controls | 8-function pendant with Auto Contour |
| Casters | Eight 3" casters; four lock; two guide locks |
| Warranty | 15 years welds; 10 years frame; 2 years electronics |
Affinity Home Medical is a local home-medical supplier in South Salt Lake. If you are matching a full-electric homecare bed, a bariatric frame, or a low long-term-care bed, we can compare width, height range, and power before you order.
Store pickup, local delivery, and nationwide shipping are available. Contact our team to confirm current availability.
Call 801-906-3900 or visit 3737 S State St, South Salt Lake, UT 84115.
No. P503 stays 35 inches wide. The expandable 36-42 inch bed is the P903.
Height range is 7.8-30 inches with true vertical lift.
Yes. This model is available to see at the Salt Lake City showroom. Call first if you want us to pull it before you visit.
Call Affinity Home Medical at 801-906-3900, or visit 3737 S State St, South Salt Lake, UT 84115. We can compare homecare split frames, bariatric widths, and low long-term-care beds before you order.
Add the Drive Prime P503 Full-Electric Hi-Low Bed Package to your cart when you are ready. Questions? Call 801-906-3900 or visit 3737 S State St, South Salt Lake, UT 84115.
