EZ-Access Modular Ramp Systems with Picketed Handrails

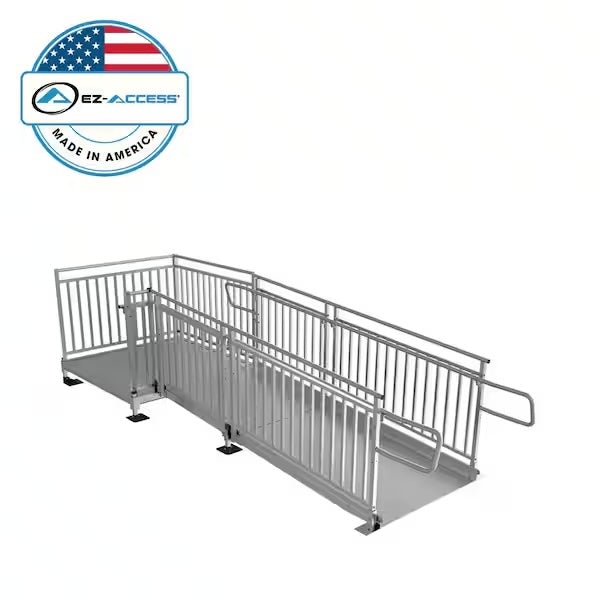

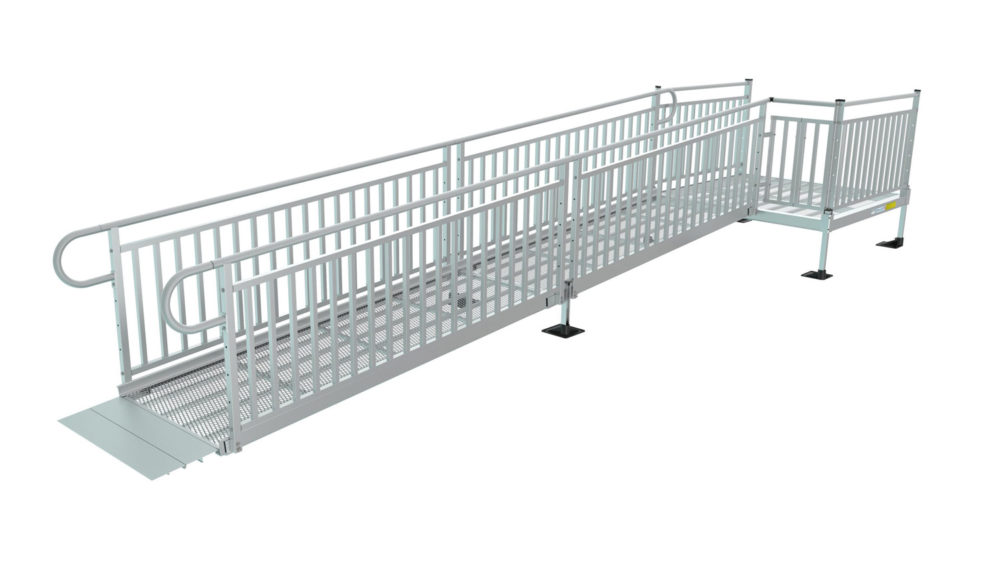

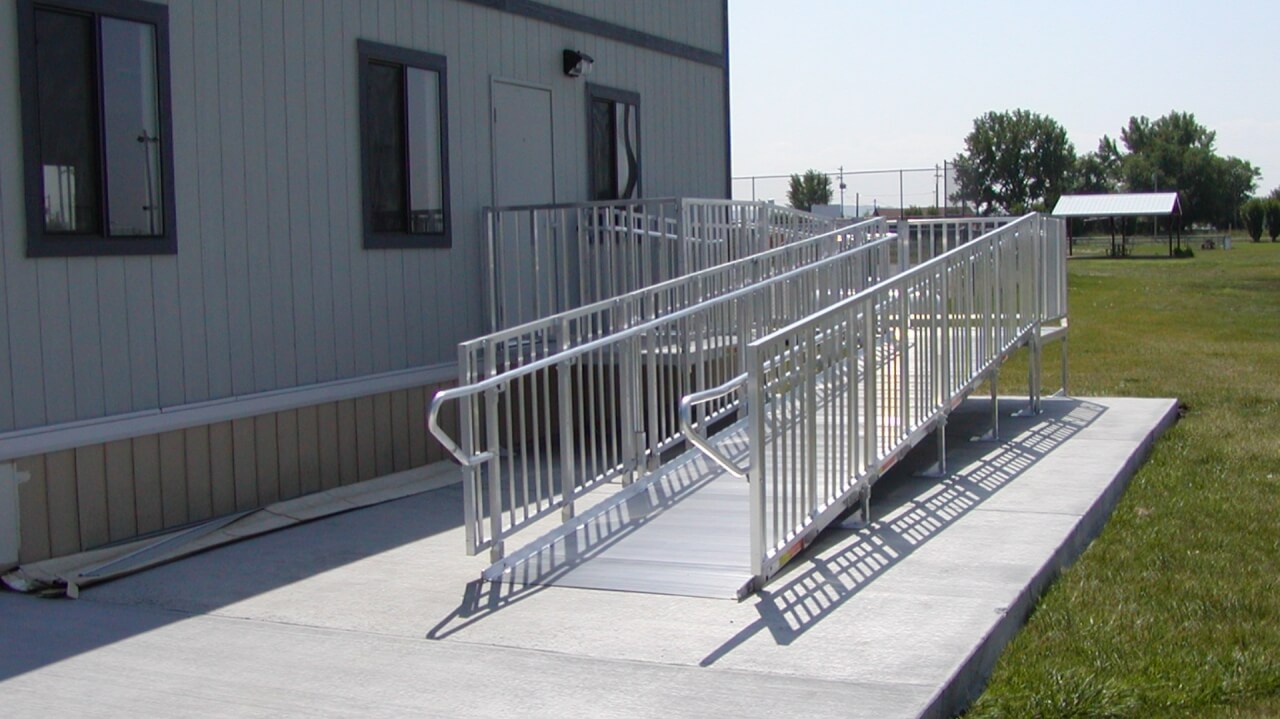

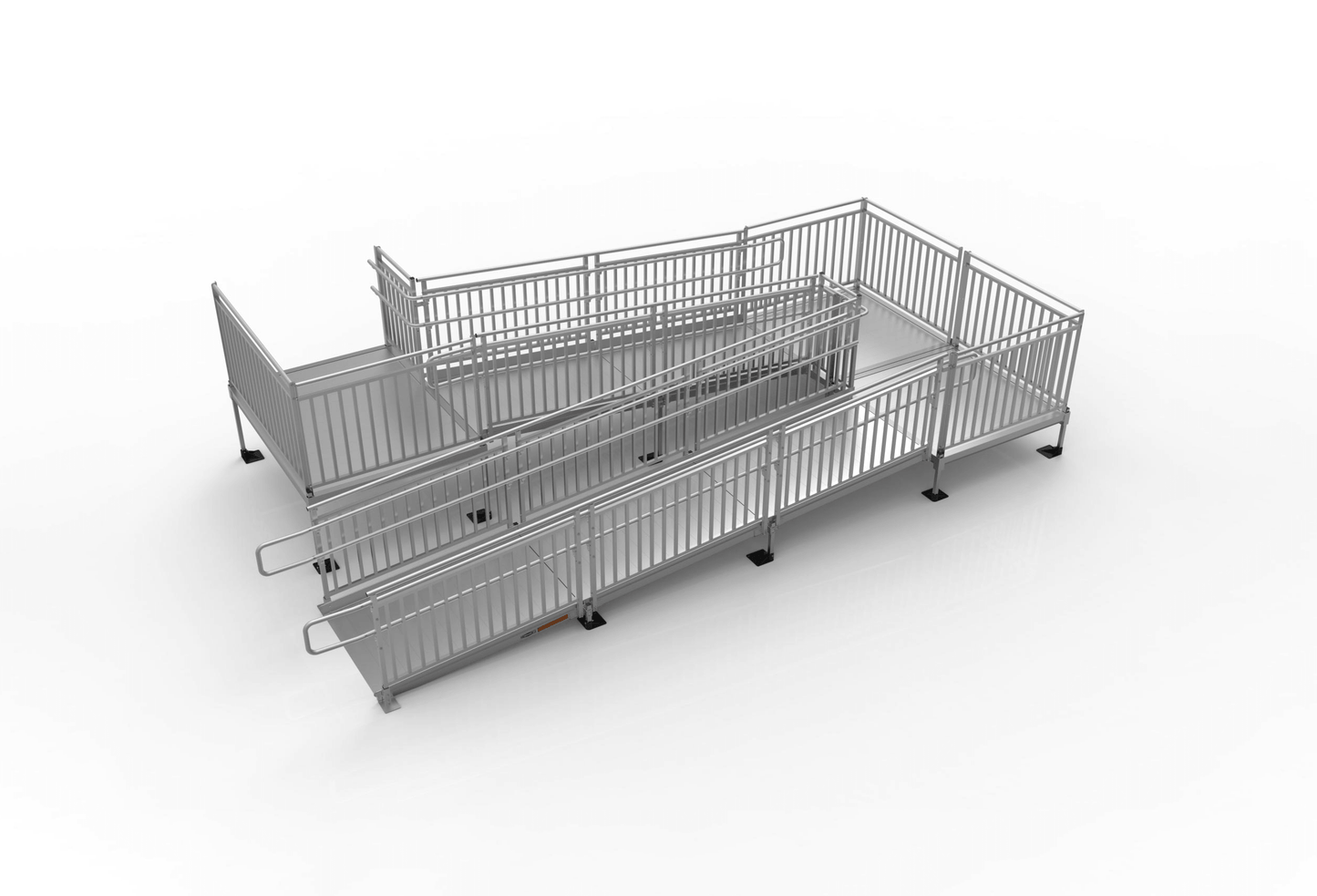

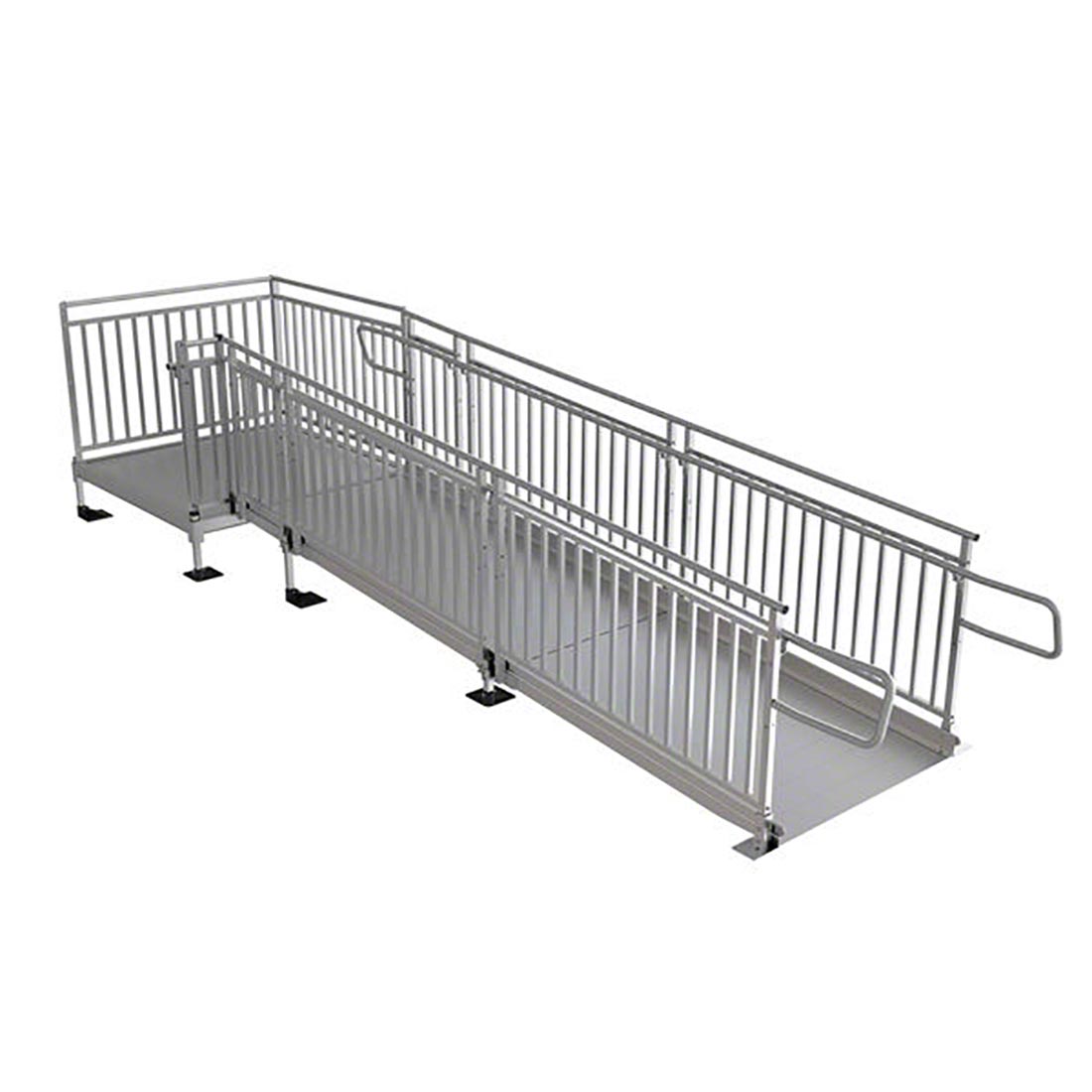

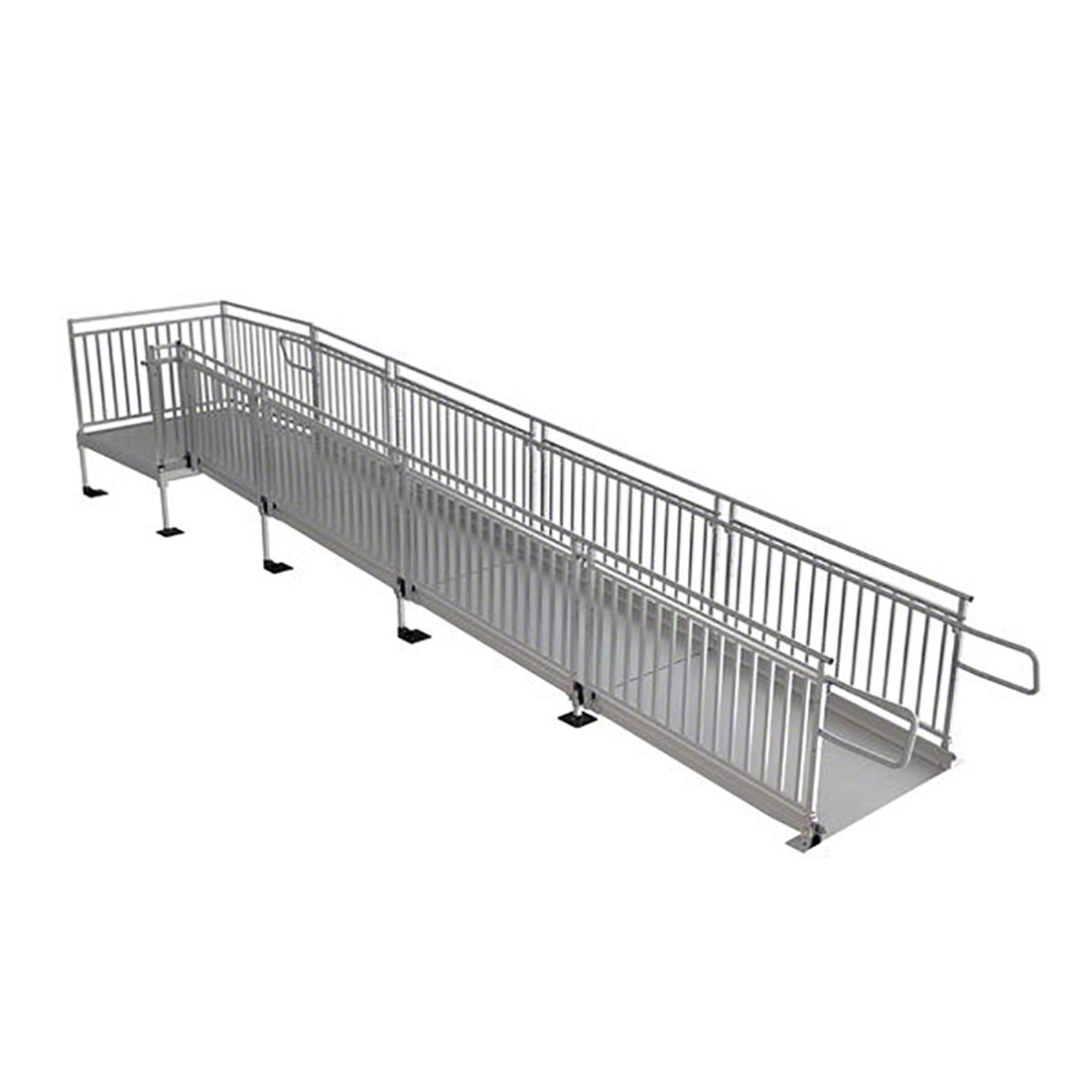

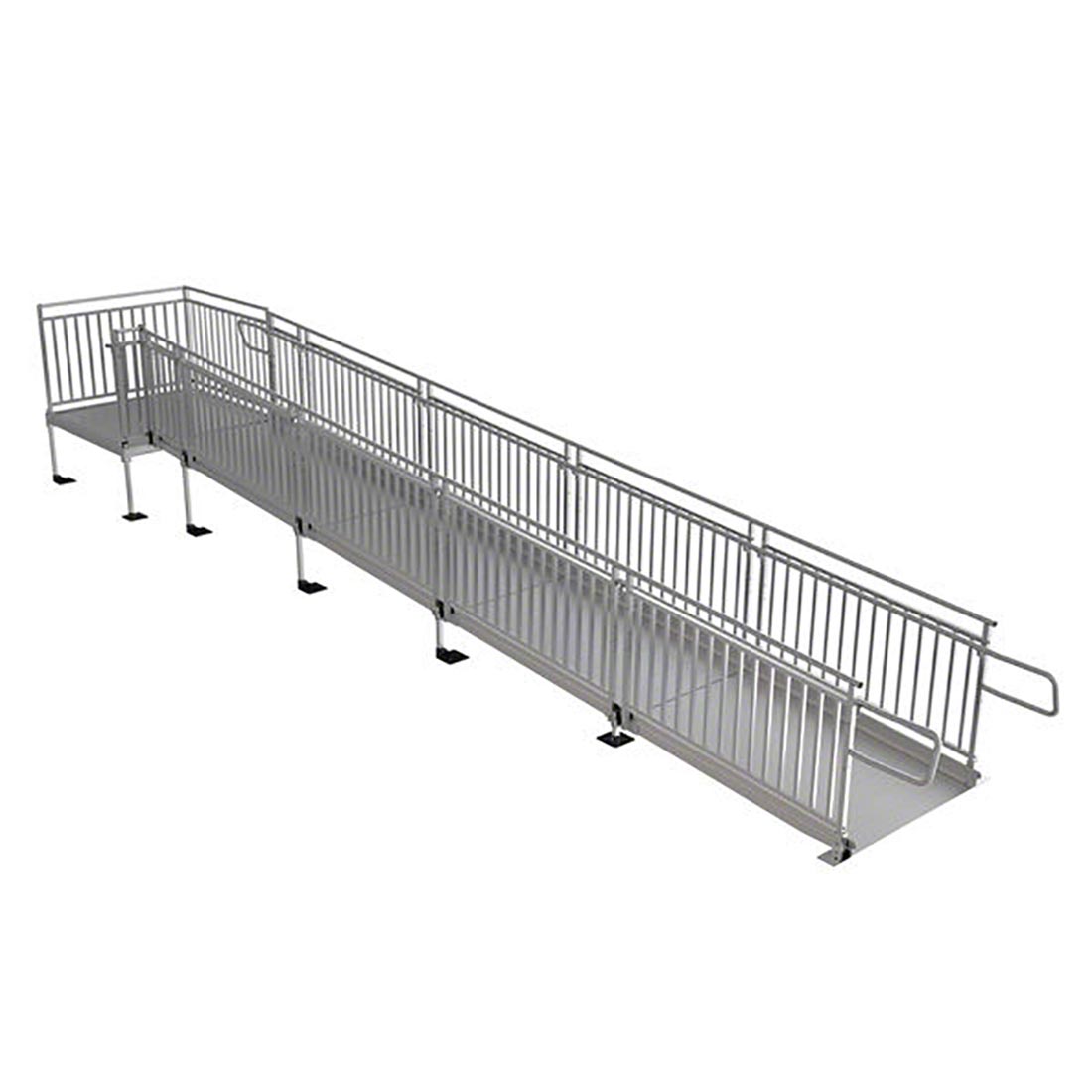

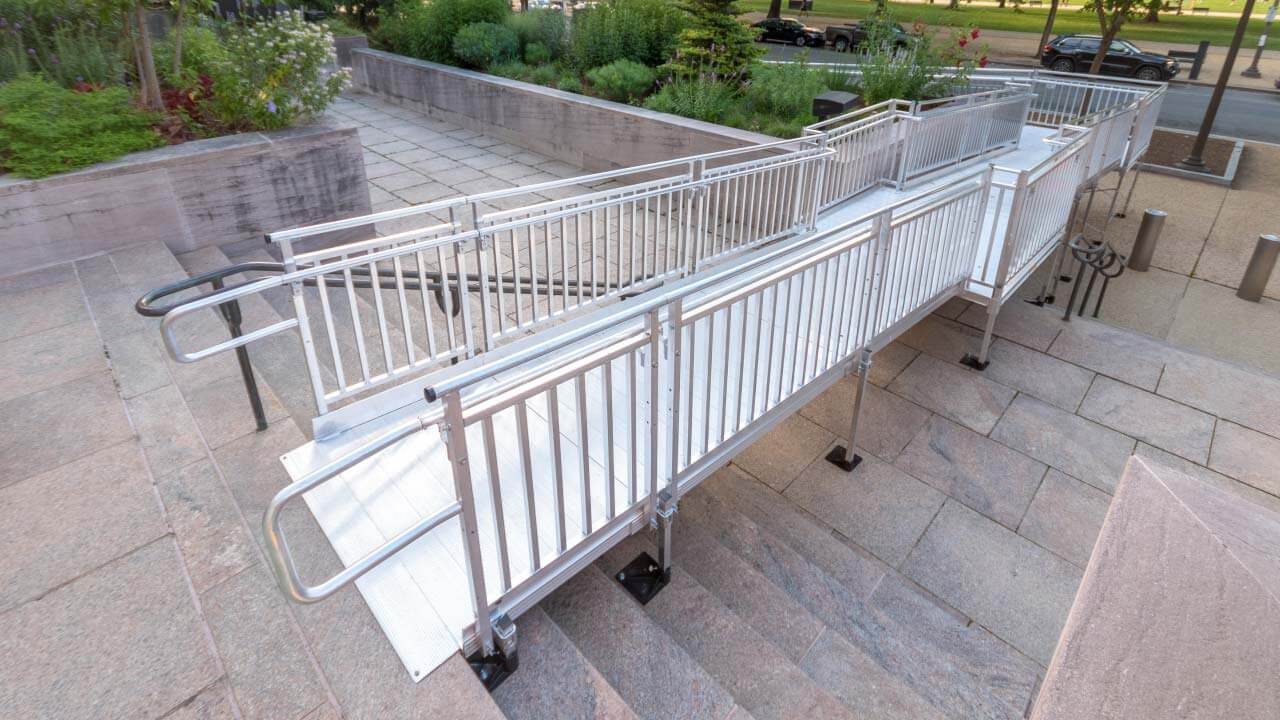

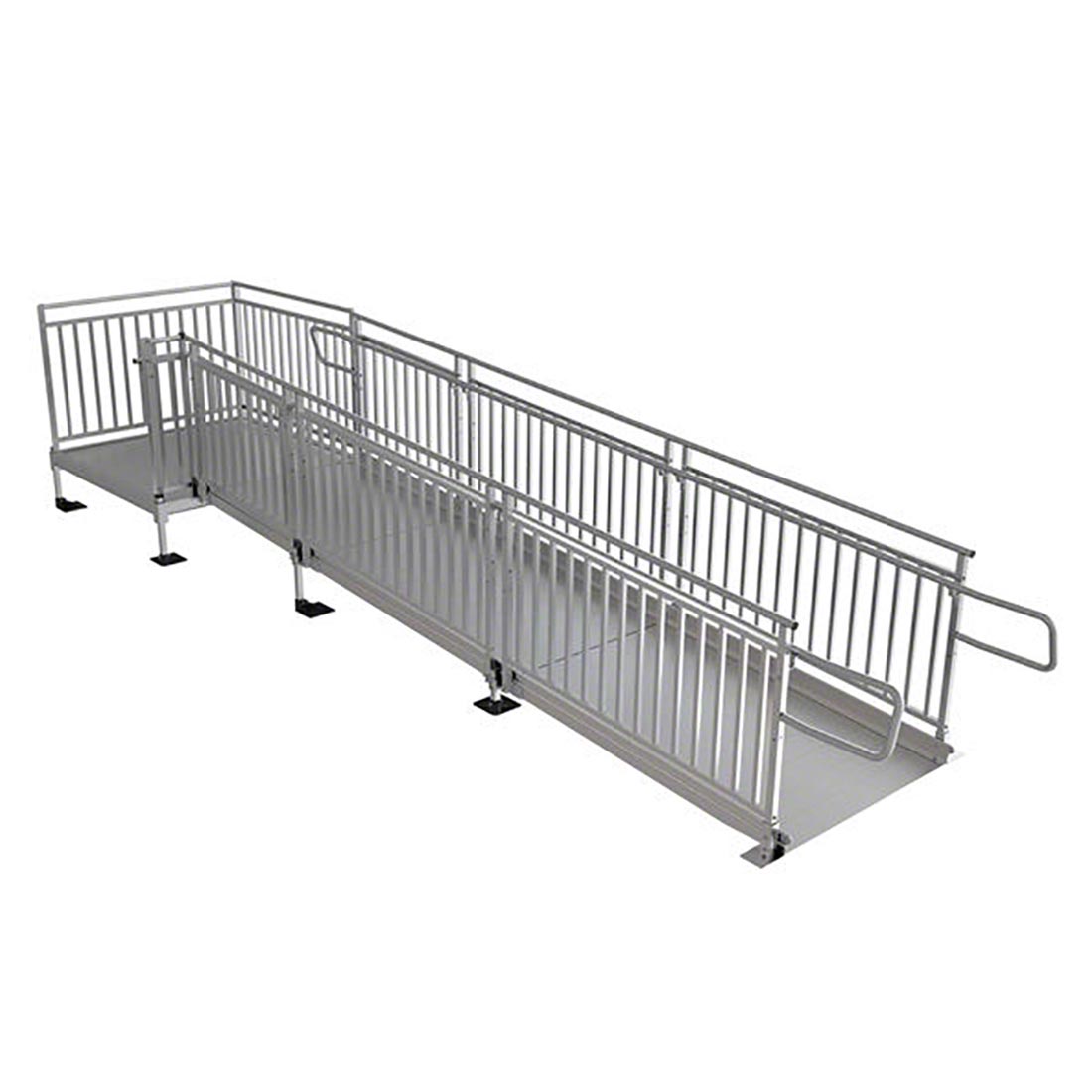

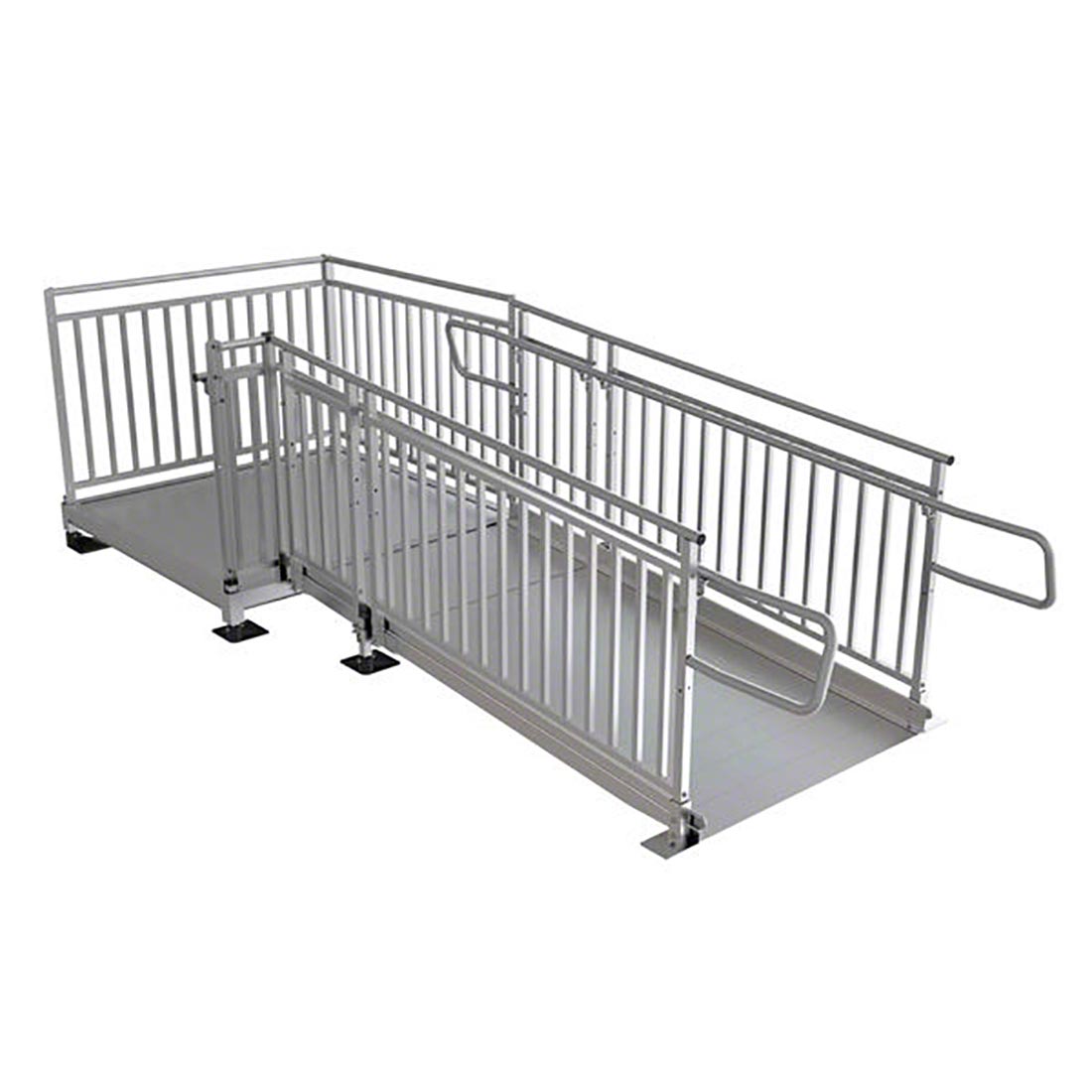

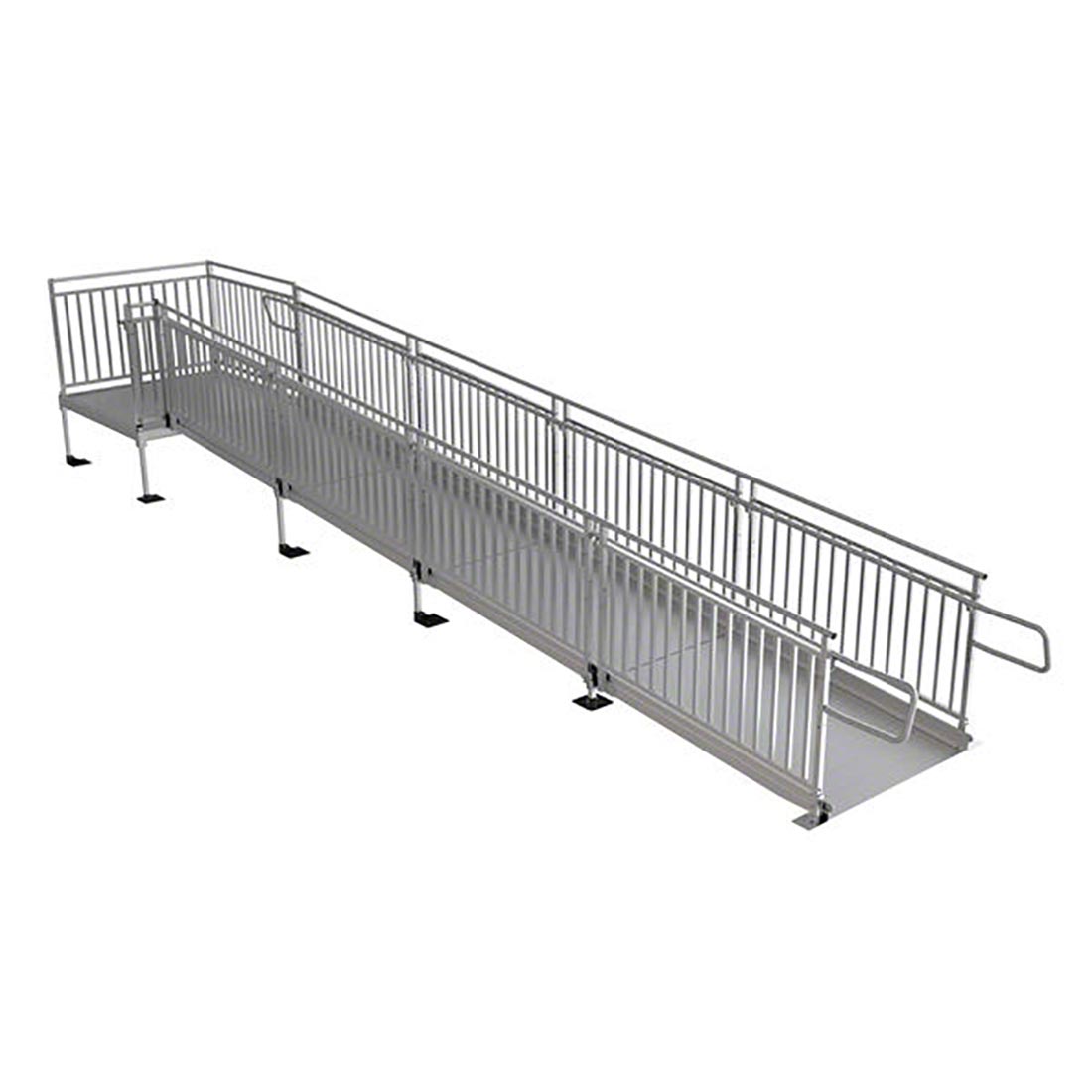

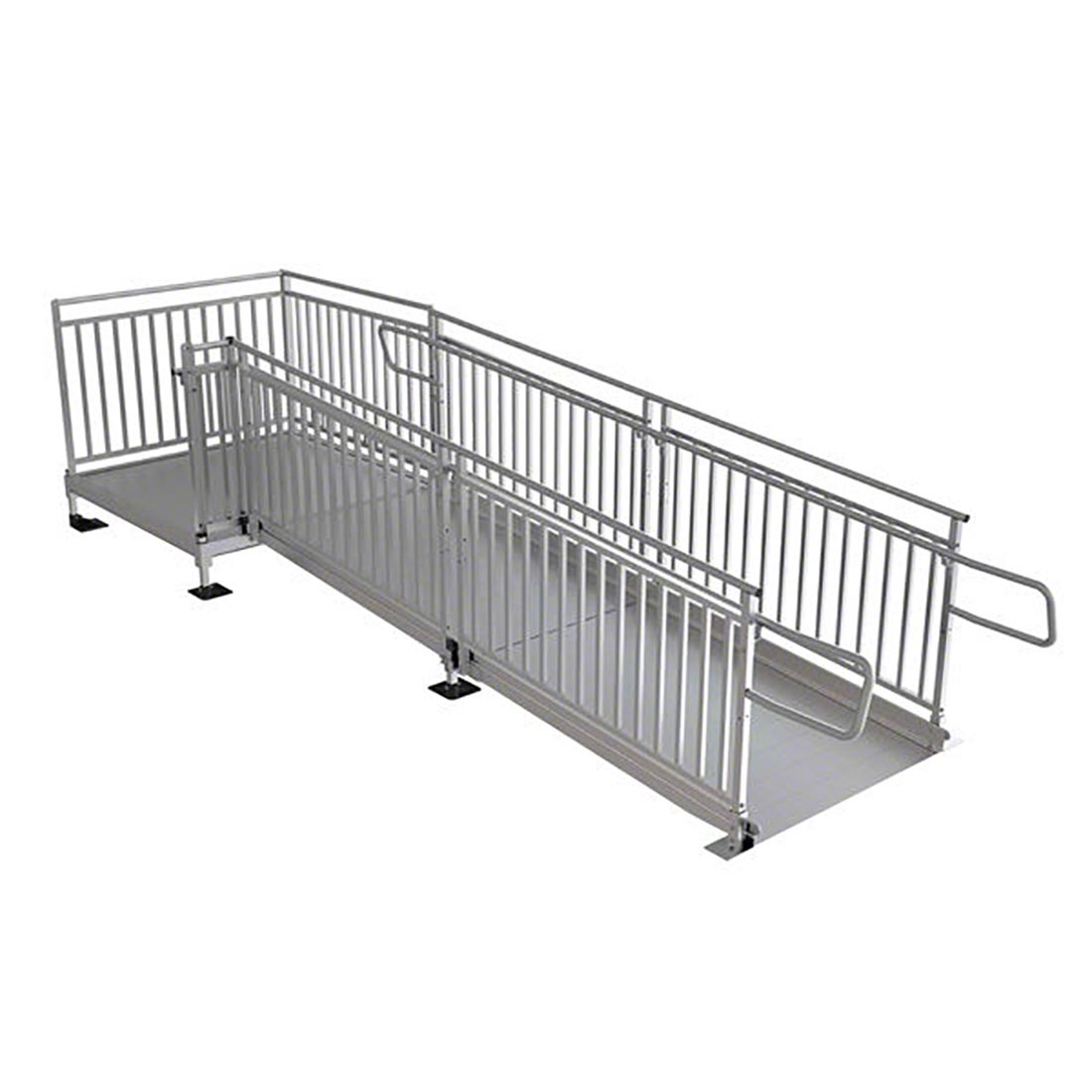

EZ-ACCESS PATHWAY HD Modular Ramp with Picketed Rails

The EZ-ACCESS PATHWAY HD is a commercial modular aluminum ramp system with picketed 42 inch guards. Official EZ-ACCESS specs list 48 or 54 inch clear ramp widths and 2 to 6 foot ramp sections.

This PATHWAY HD wheelchair ramp is the code-compliant line, not the residential PATHWAY 3G kit. Platforms are offered at 5 x 5, 5 x 6, 5 x 7, and 6 x 6 feet. EZ-ACCESS lists platform loading at 100 lb per square foot uniform live load and a 300 lb concentrated load. Confirm the run, rise, and local code before you order.

Key Features

• 48 or 54 inch clear width: Wider than a typical 36 inch residential PATHWAY 3G ramp.
• 2 to 6 foot ramp sections: Combine ramps, platforms, and stairs.
• Picketed 42 inch guards: Standard handrail is 36 inches. Child rail is 25 inches.
• Gecko Grip aluminum tread: Raised-rib, welded, slip-resistant walking surface.
• ADA, IBC, and OSHA design notes: Site-specific stamped drawings are available from EZ-ACCESS.
• 3-year warranty: Bracing is required at rises of 36 inches and above.

Who Is This PATHWAY HD Ramp For?

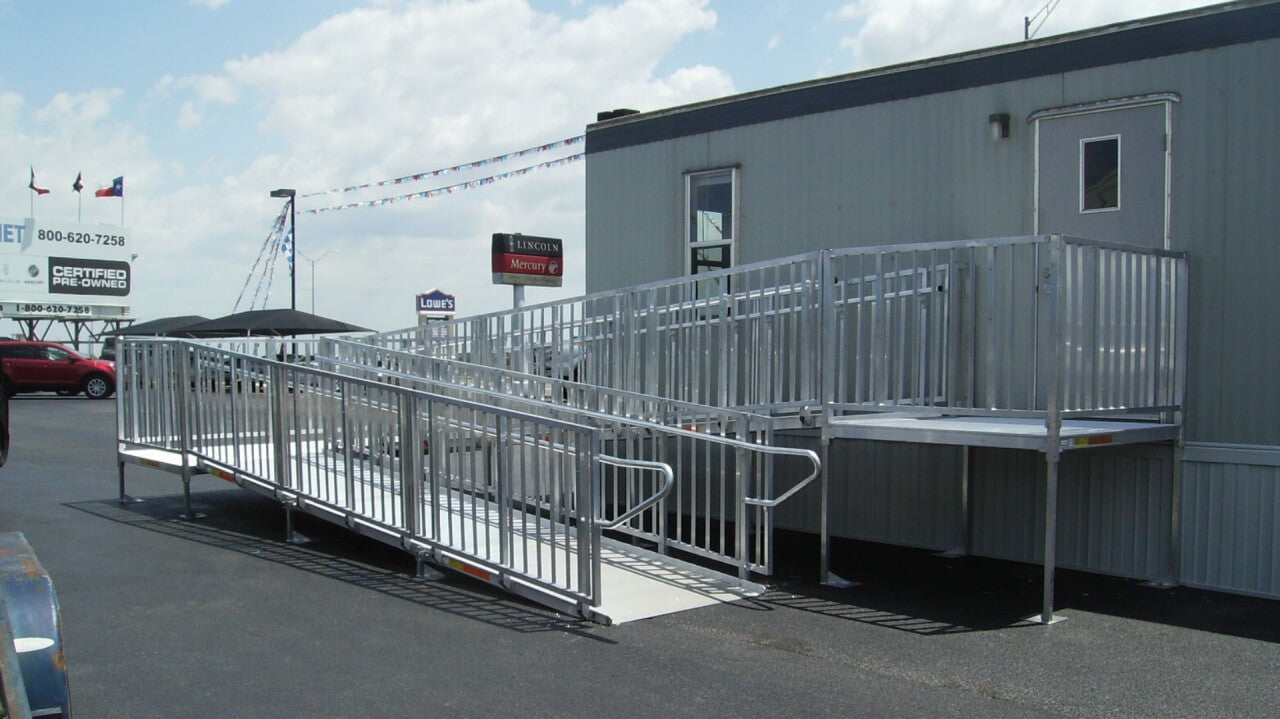

The PATHWAY HD is designed for a home, clinic, or temporary building that needs a code-oriented modular ramp with picketed rails. Choose PATHWAY 3G if you want a residential 1,000 lb kit with two-line handrails. A suitcase ramp is only for a short portable threshold, not a full entry system.

Wheelchair Ramps in Salt Lake City

Contact Affinity Home Medical for help choosing a PATHWAY HD modular ramp that fits your needs. Our team can help you compare modular and portable ramp options and confirm model specifications and availability.

Call 801-906-3900 or visit 3737 S State St, South Salt Lake, UT 84115.

Specifications
