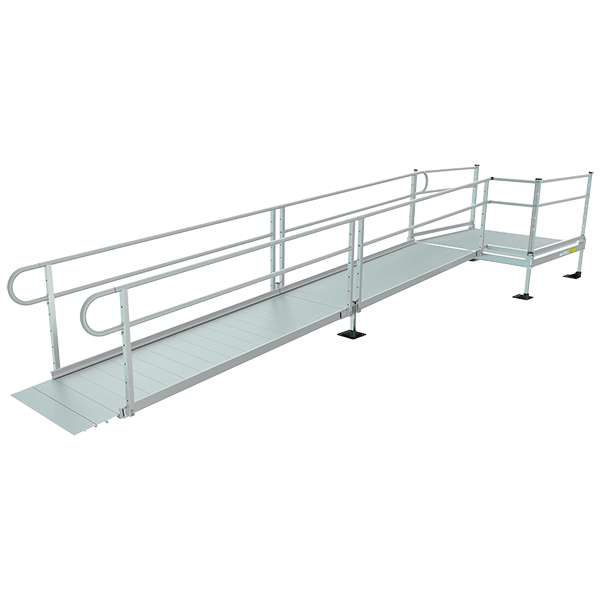

EZ-ACCESS PATHWAY 3G Modular Ramp System
The EZ-ACCESS PATHWAY 3G is a residential modular aluminum ramp kit with a 1,000 lb weight capacity. That rating is for the occupied ramp, not the weight of the aluminum sections.

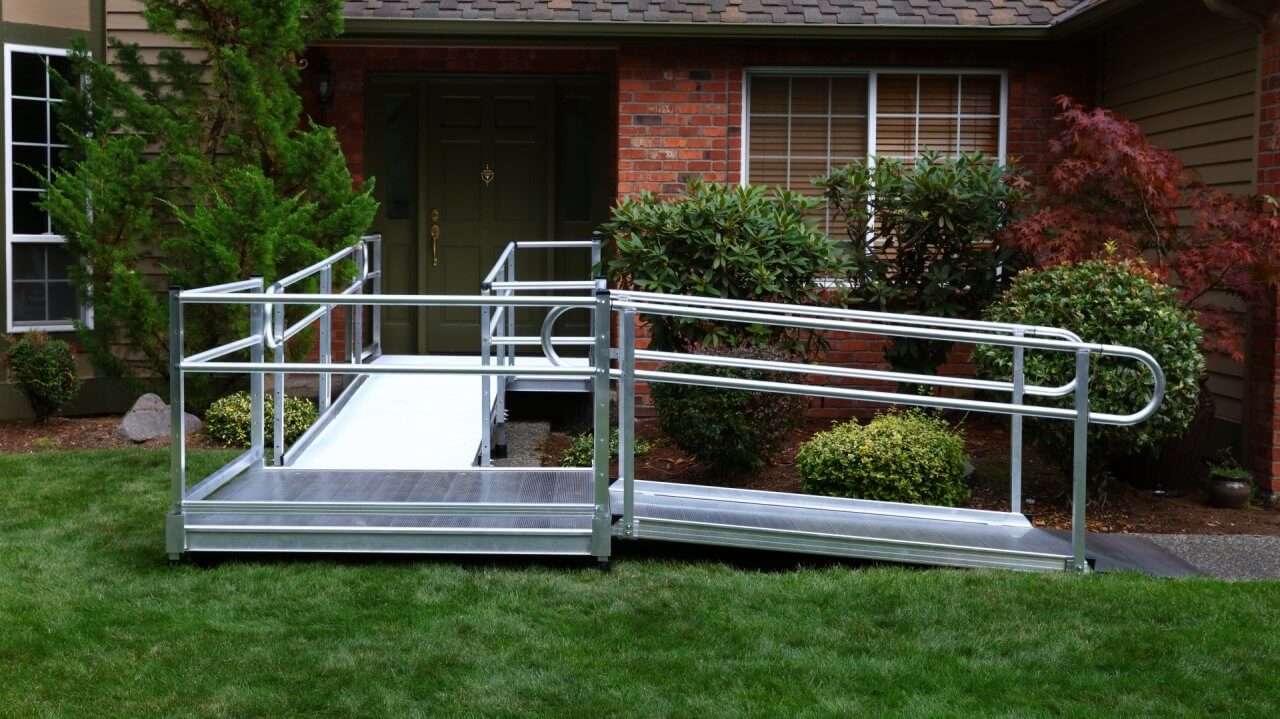

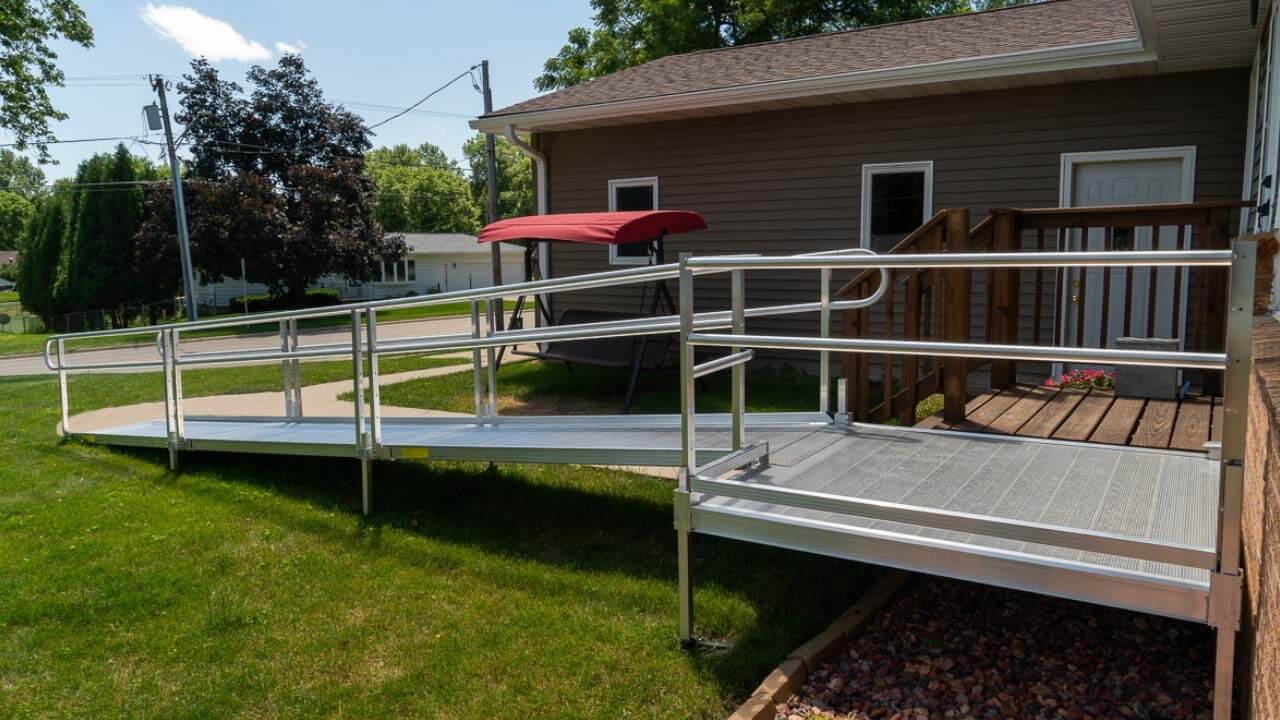

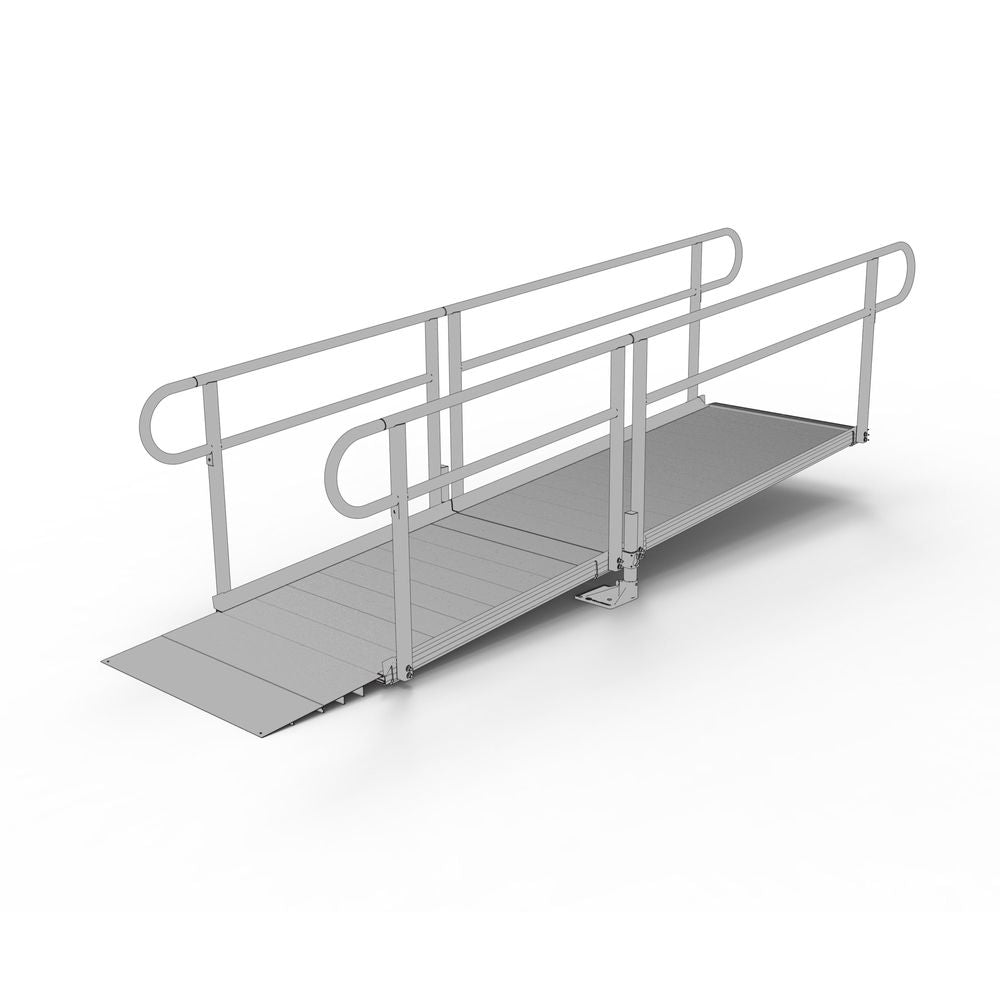

This PATHWAY 3G home ramp uses 36 inch usable ramp width on standard sections, two-line handrails, and a 2 inch side curb. Official EZ-ACCESS examples list a 4 foot section at 29.2 lb without rails and 45.2 lb with rails. Kits can run straight or turn in L or U layouts. It is not the commercial PATHWAY HD system.
Key Features
-
1,000 lb weight capacity: Rated for the user plus mobility equipment on the ramp.
-
36 inch usable ramp width: Standard residential PATHWAY 3G sections.
-
Two-line handrails: Upper rail 34.5 inches, lower rail 24 inches, 1.5 inch diameter.
-
Modular aluminum: Reconfigure, move, or add platforms as the entry changes.
-
Raised-rib slip-resistant tread: Finished sides with no bolts in the walking path.
-
Lifetime limited warranty: Made in the USA.
Who Is This PATHWAY 3G Ramp For?

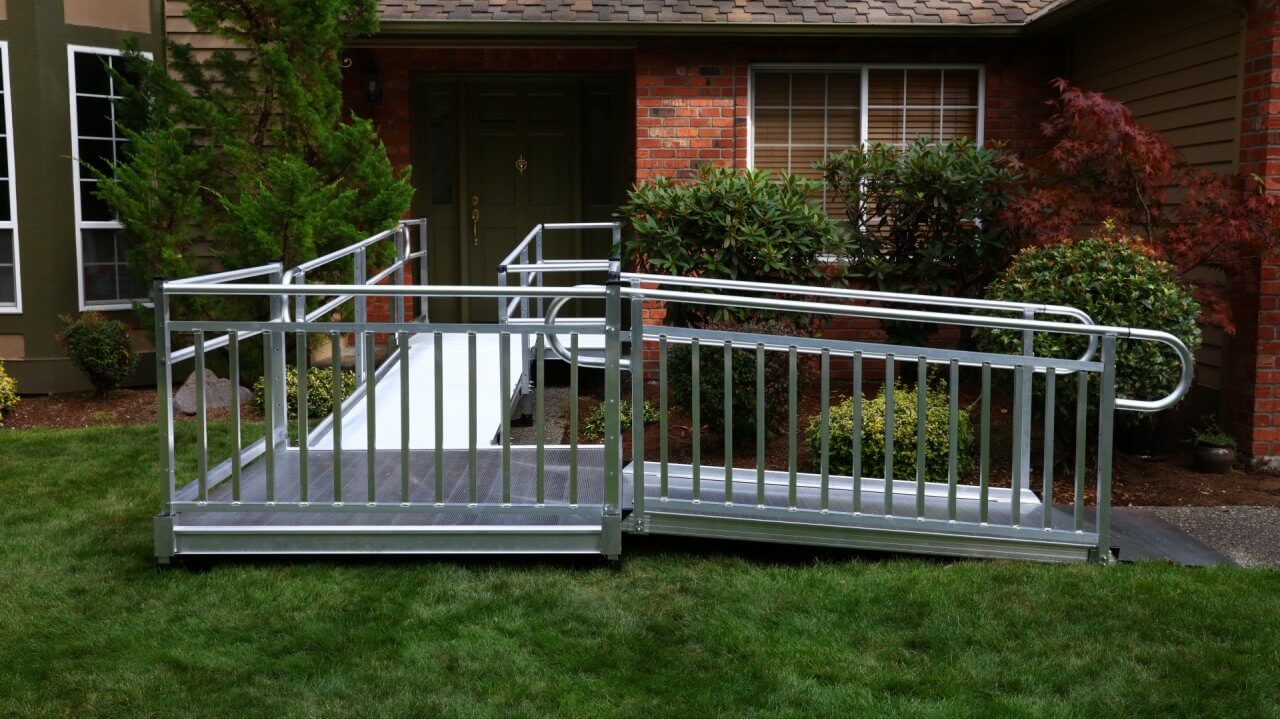

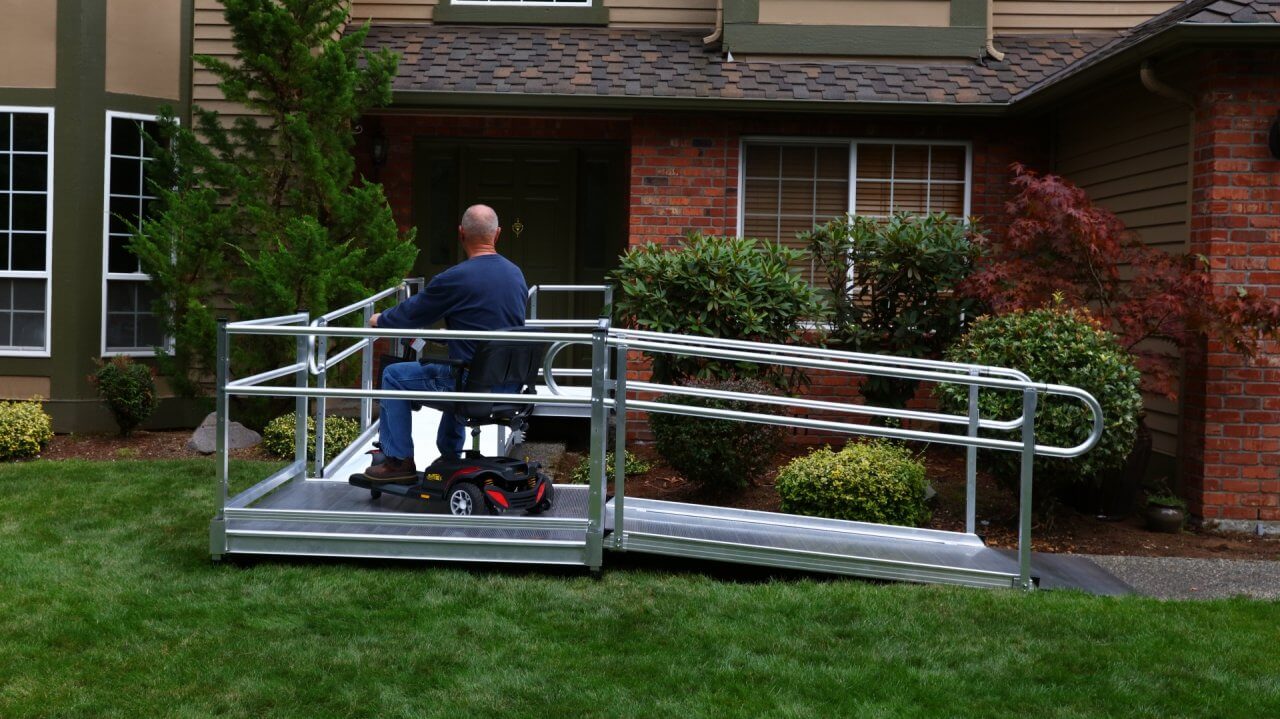

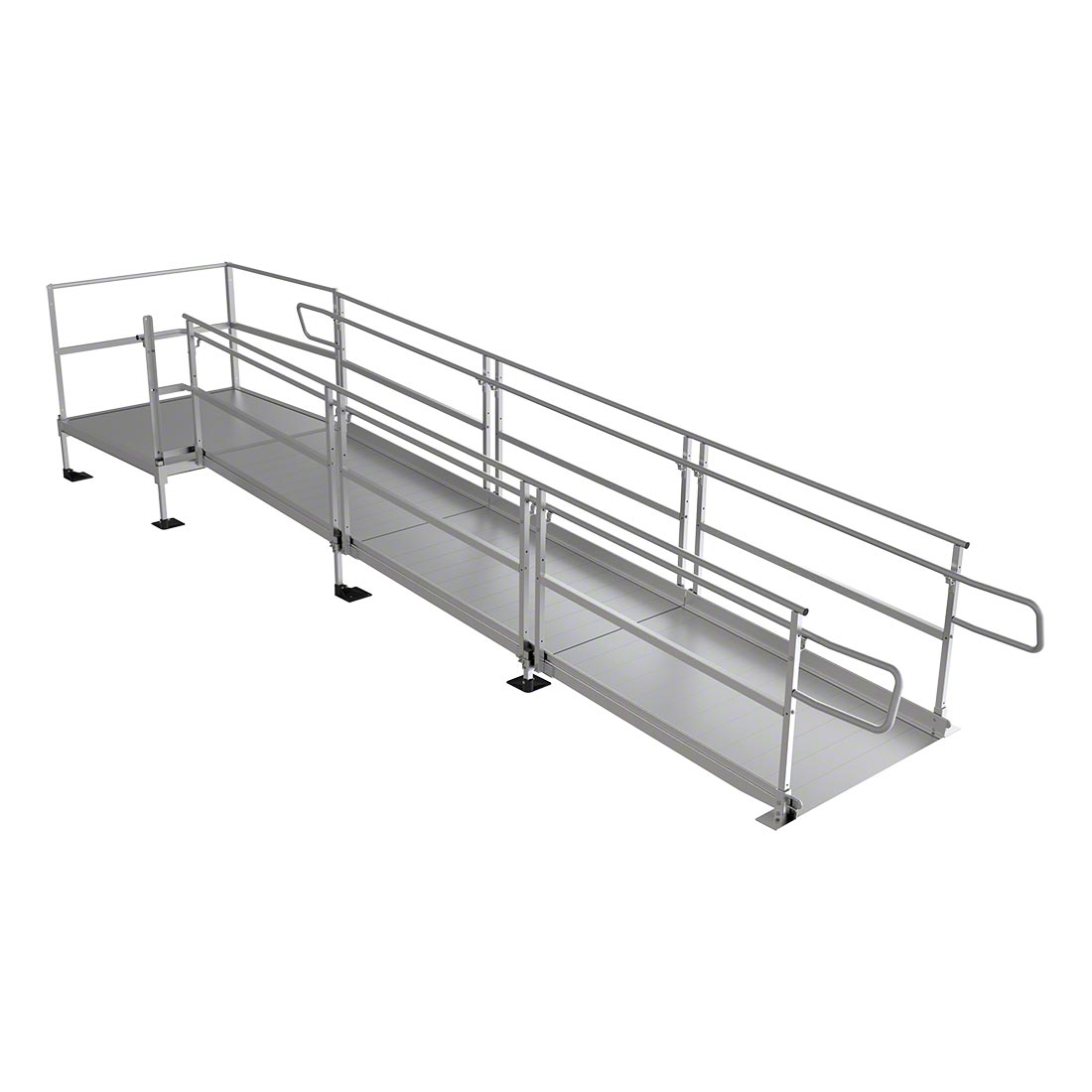

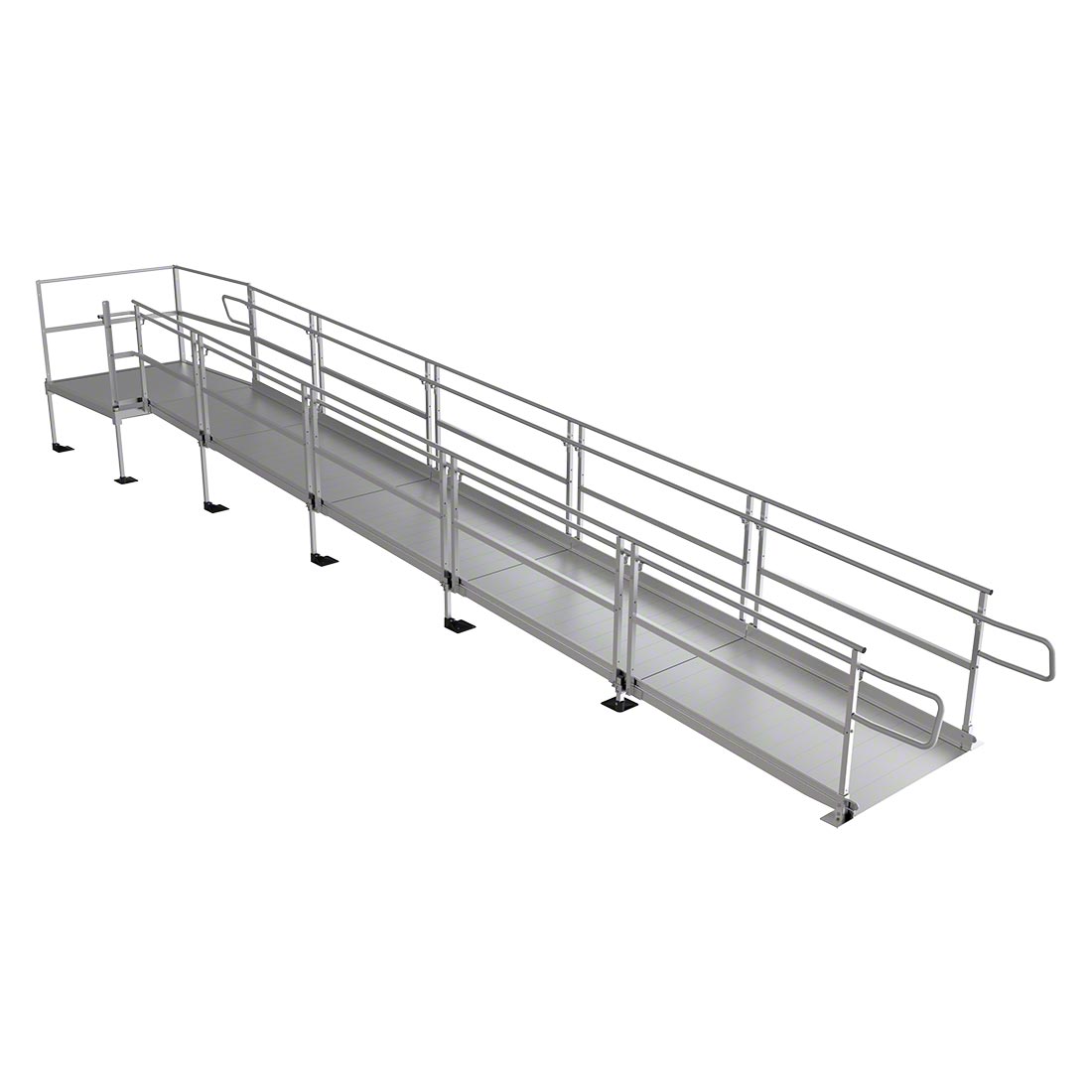

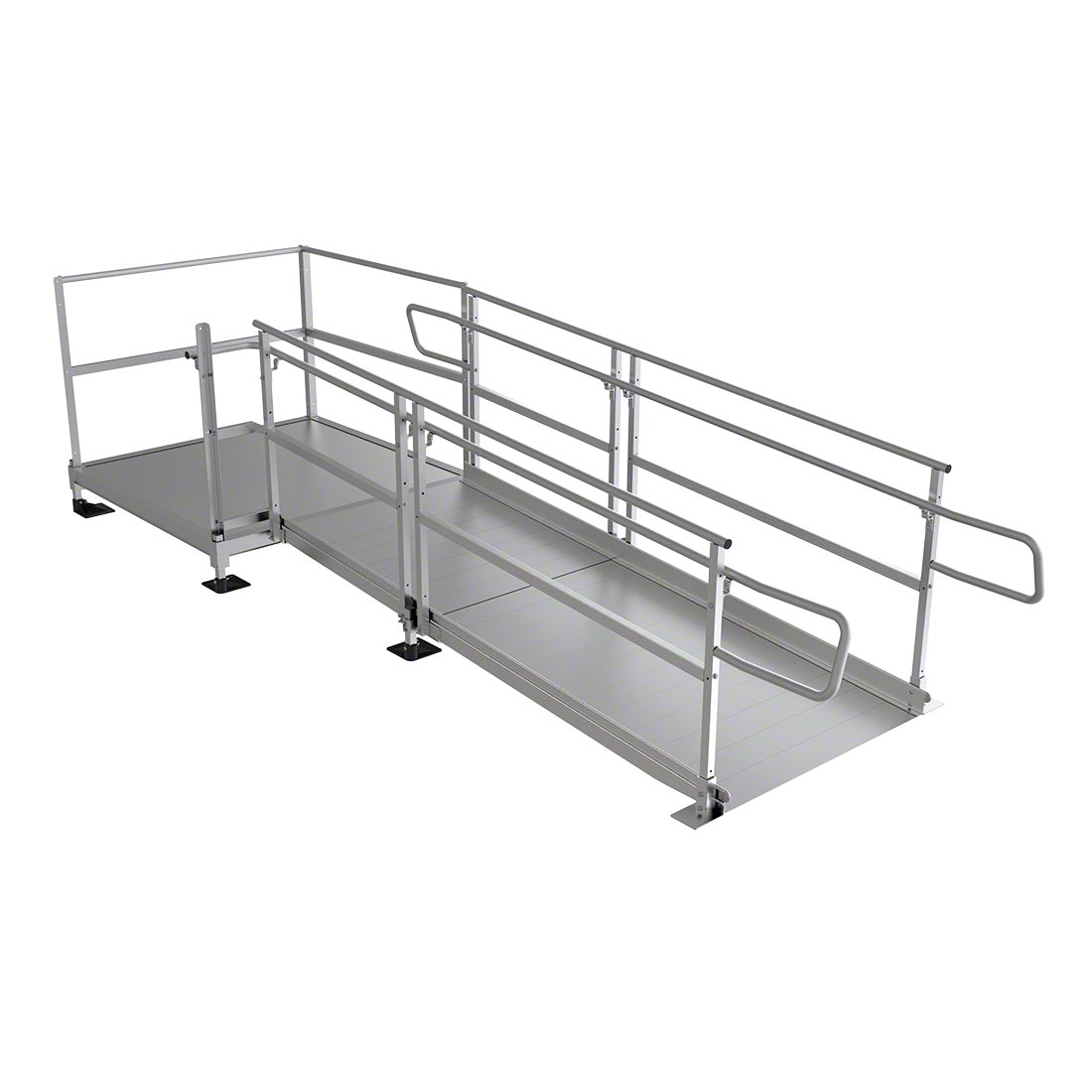

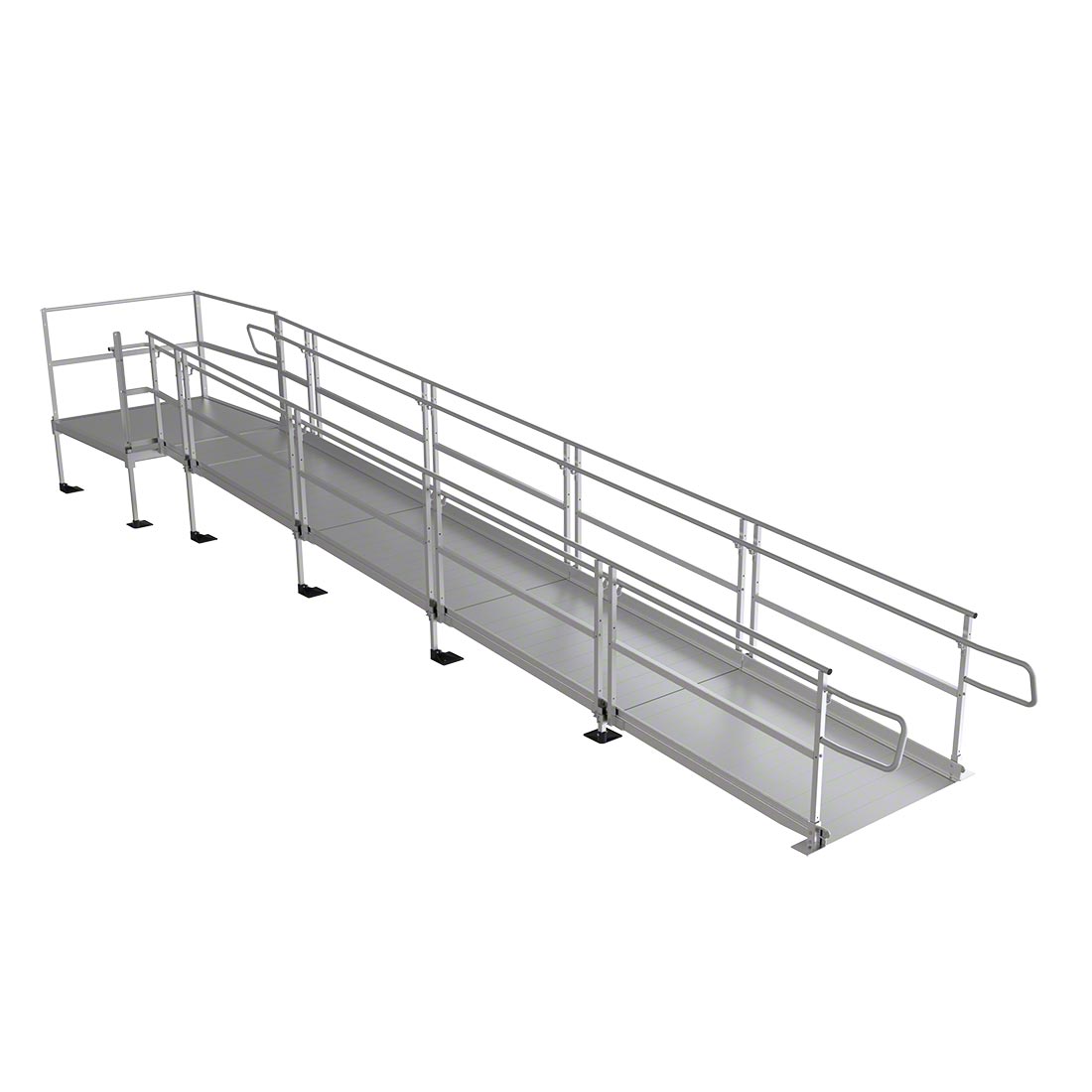

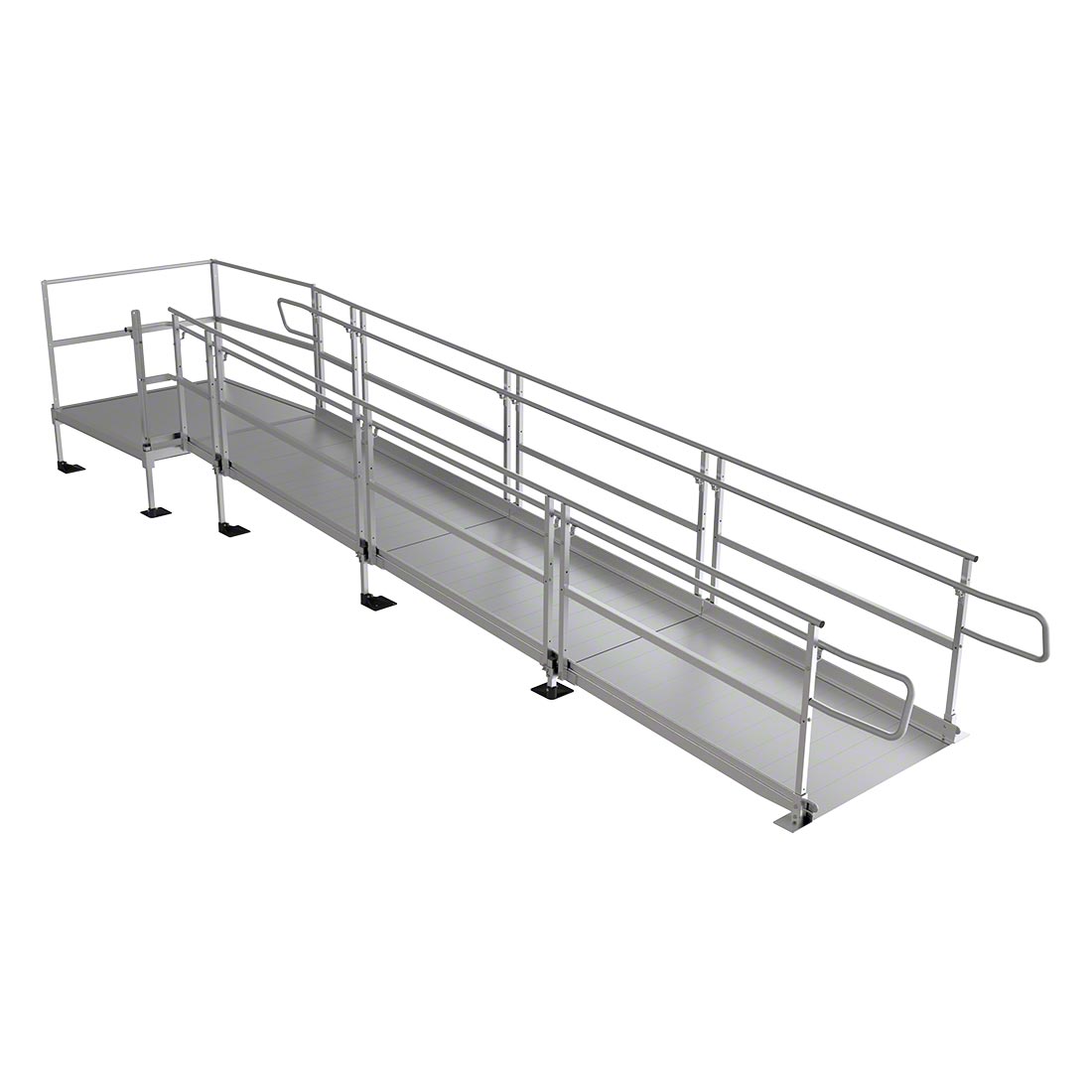

The PATHWAY 3G is designed for a home entry that needs a semi-permanent modular ramp instead of a wood build. Choose PATHWAY HD if you need 48 or 54 inch clear width and picketed commercial rails. Choose a suitcase ramp only for a short portable threshold.
Wheelchair Ramps in Salt Lake City
Contact Affinity Home Medical for help choosing a PATHWAY 3G modular ramp that fits your needs. Our team can help you compare modular and portable ramp options and confirm model specifications and availability.
Call 801-906-3900 or visit 3737 S State St, South Salt Lake, UT 84115.
Specifications
- Brand: EZ-ACCESS
- Model: PATHWAY 3G Modular Access System
- Type: Residential modular aluminum ramp kit
- Weight Capacity: 1,000 lb
- Usable Ramp Width: 36 in on standard ramp sections

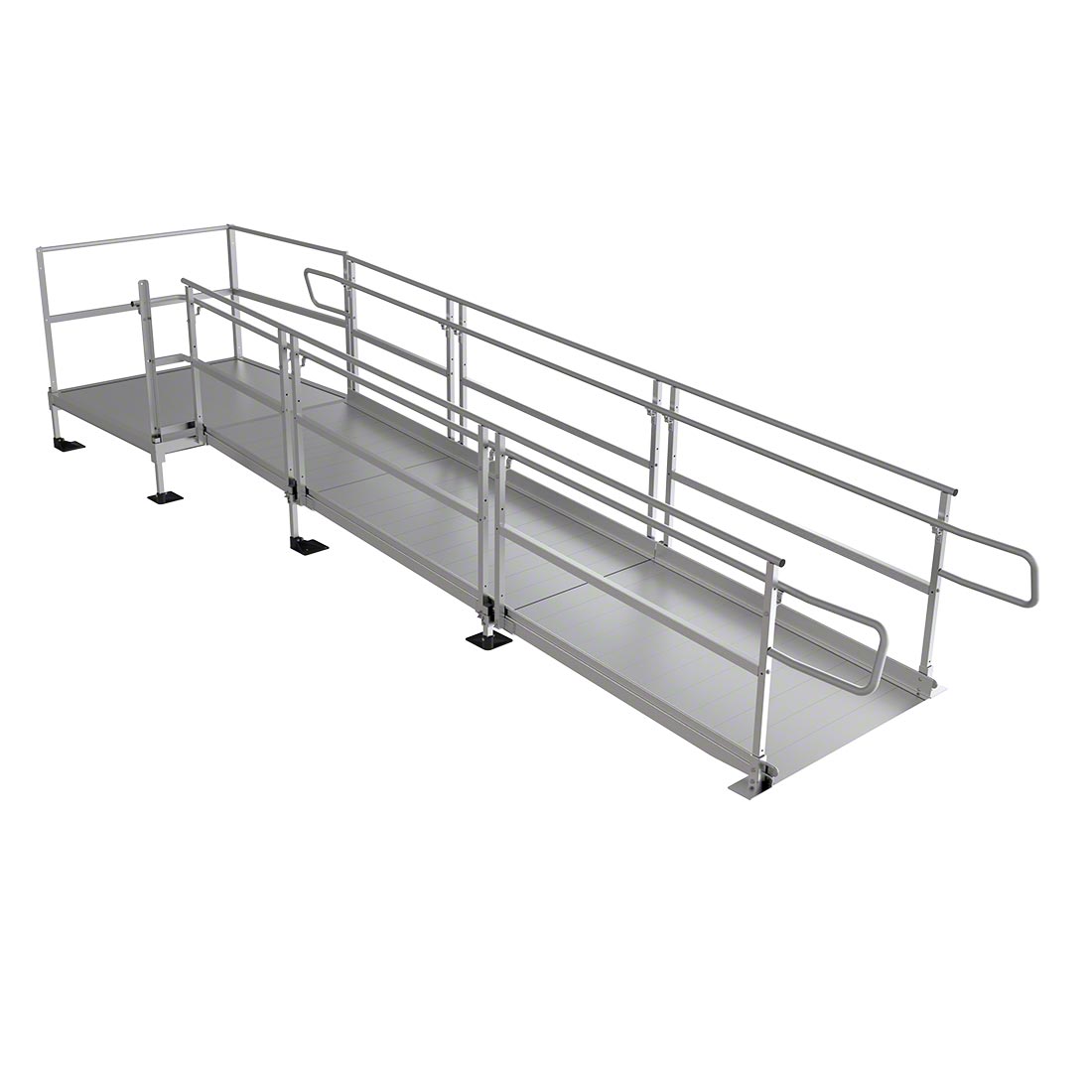

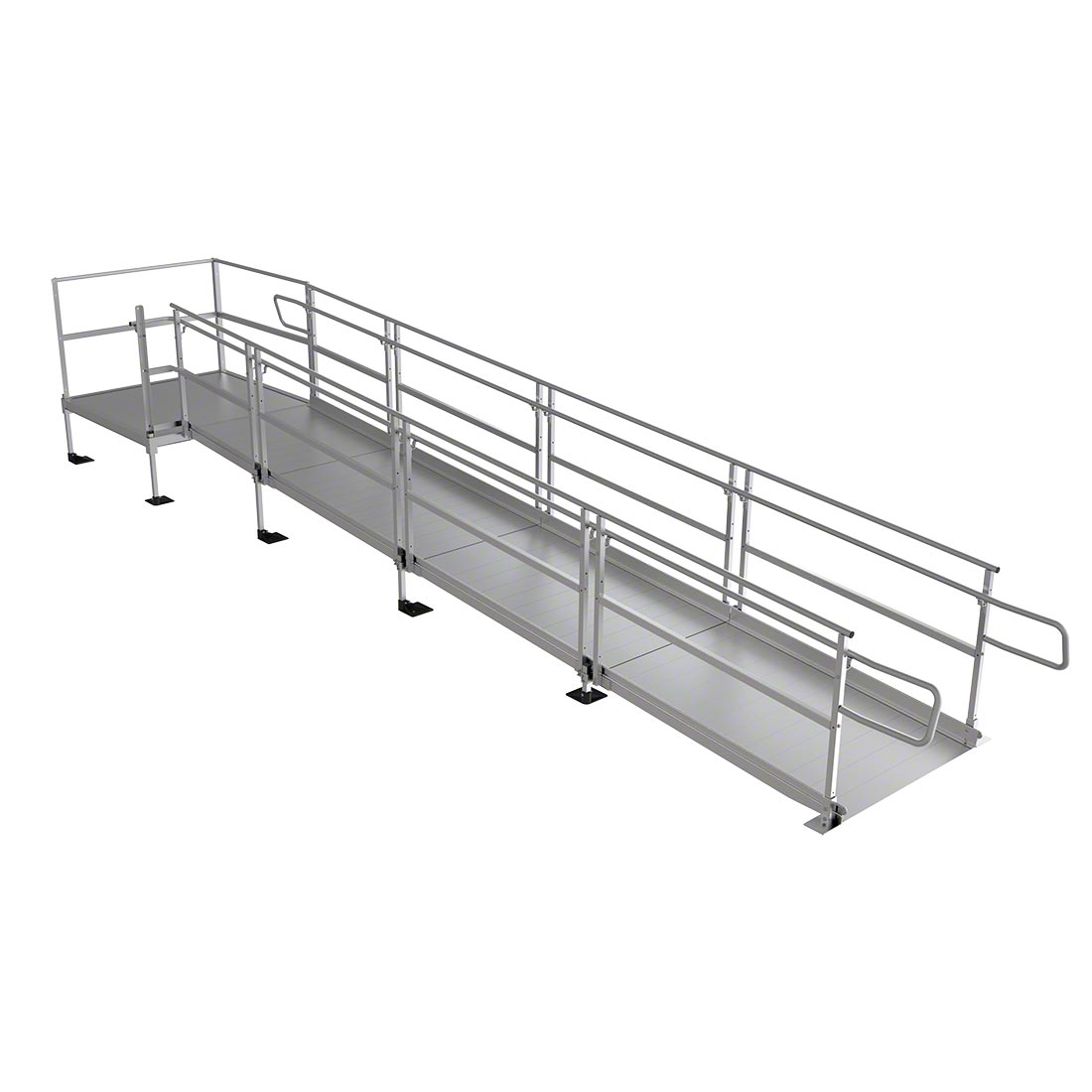

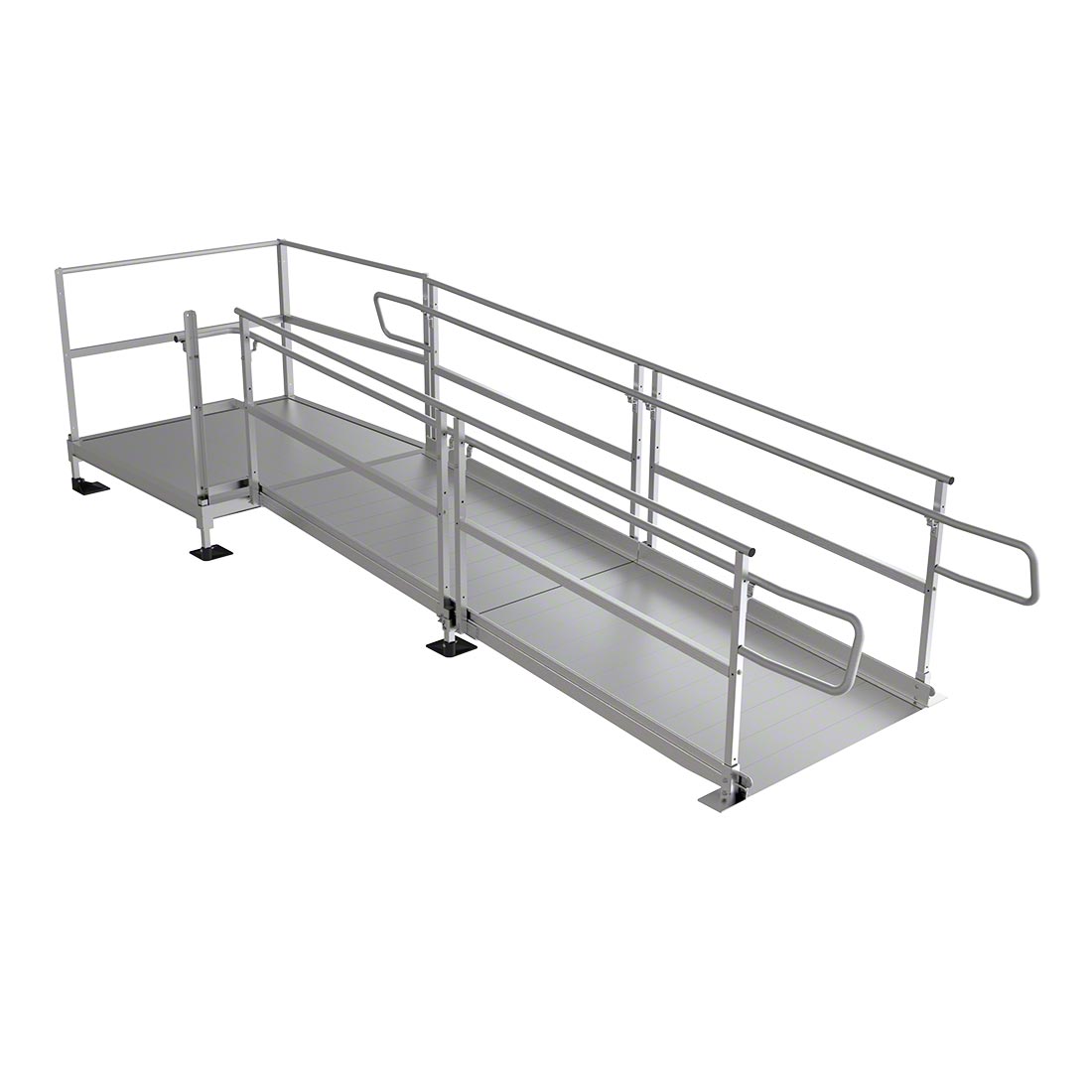

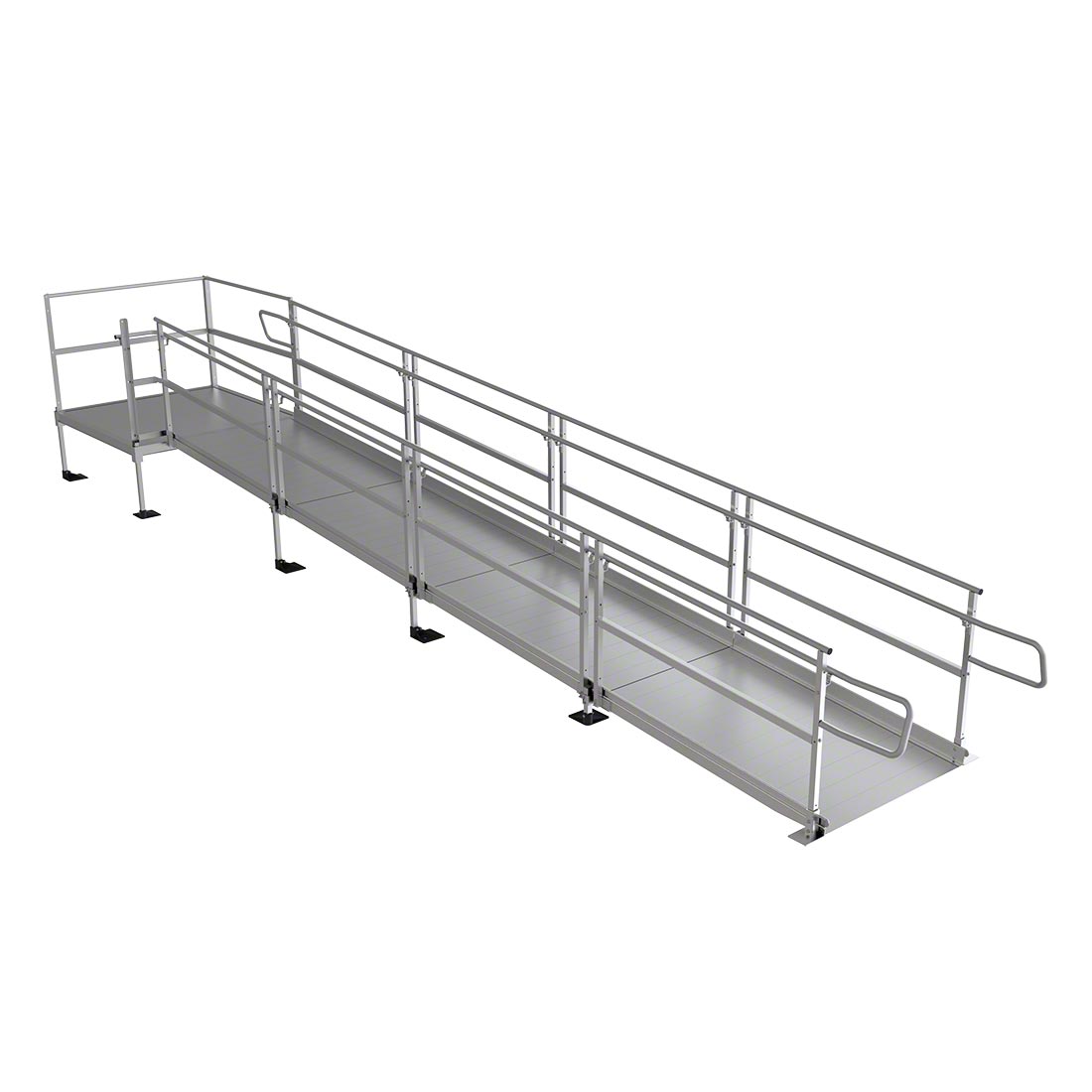

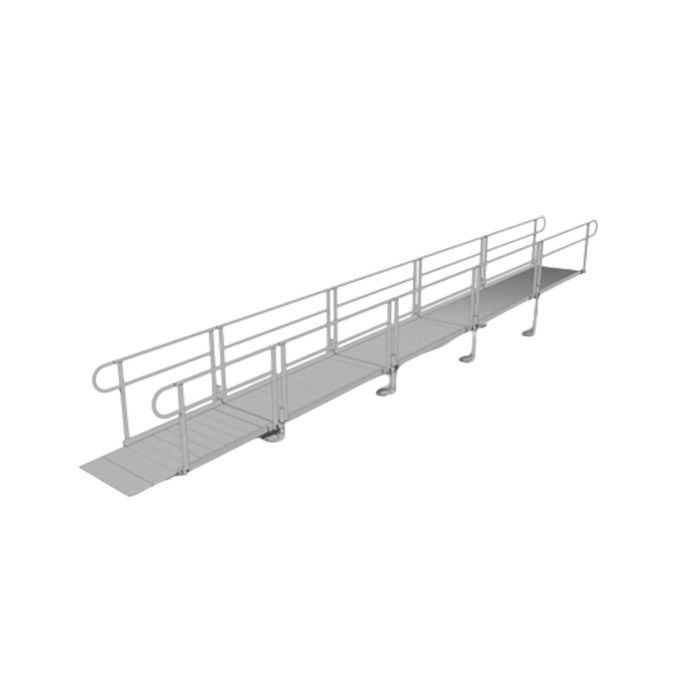

- Example Ramp Lengths: 4 ft and 6 ft sections; kits offered as straight, L, and U layouts
- Handrails: Two-line aluminum; upper rail 34.5 in, lower rail 24 in, 1.5 in diameter
- Side Rail Curb: 2 in
- Example Weights: 4 ft ramp 29.2 lb without rails, 45.2 lb with rails
- Tread: Extruded aluminum with raised ribs
- Origin: Made in USA
- Warranty: Lifetime limited
