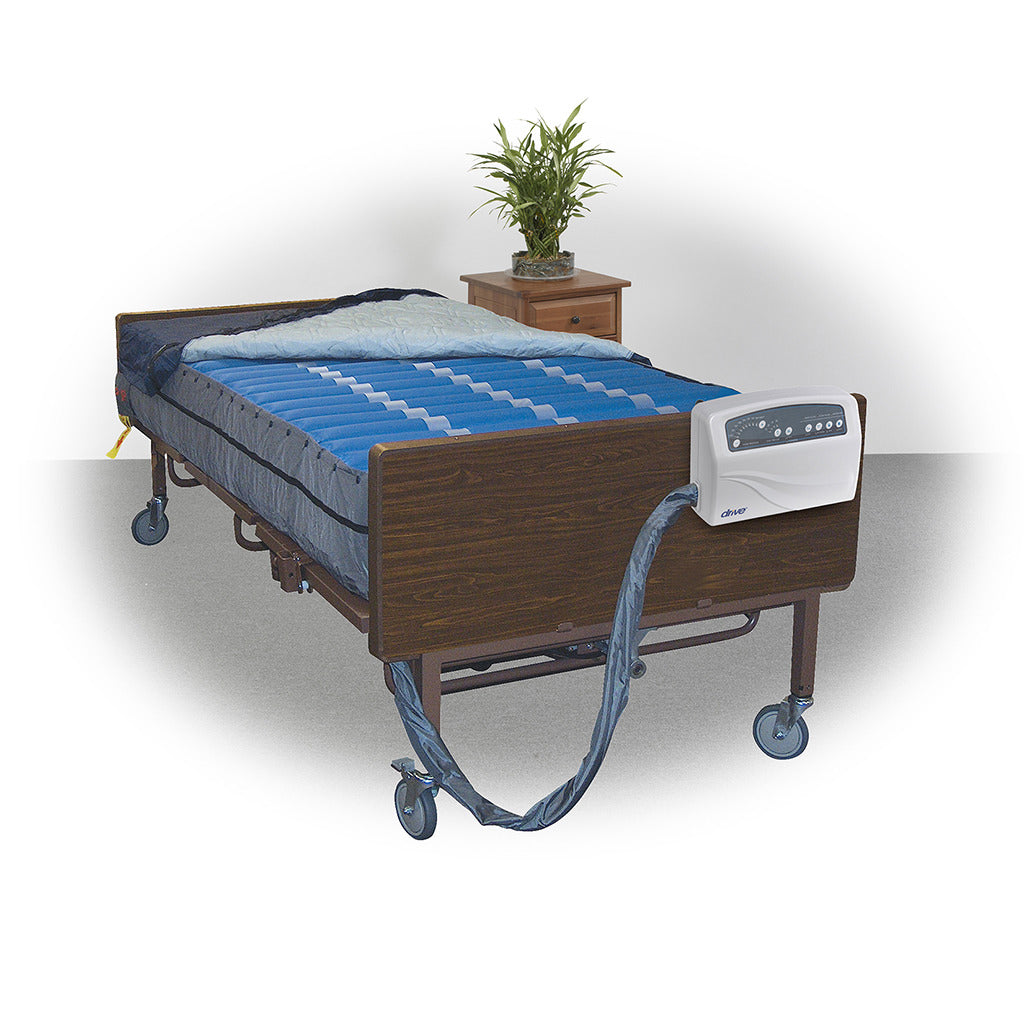

A 36-inch air mattress is too narrow when the deck is 42-inch. The Drive Med-Aire Plus 10" Bariatric Alternating Pressure and Low Air Loss Mattress Replacement System is Drive 14030. Twenty 10-inch cell-on-cell cells sit on a 42 by 80 deck. Capacity is 600-lb. It is not the 48, 54, or 60-inch sibling.
14030 is built for a 42-inch deck such as Drive 15300LW. A 36-inch Med-Aire Plus will not fill it.
The bariatric Plus family uses 10-inch cell-on-cell cells with four digital cycle times.
48-inch 14048 is 750-lb. 54-inch 14054 and 60-inch 14060 are 1000-lb. Do not mix those numbers.

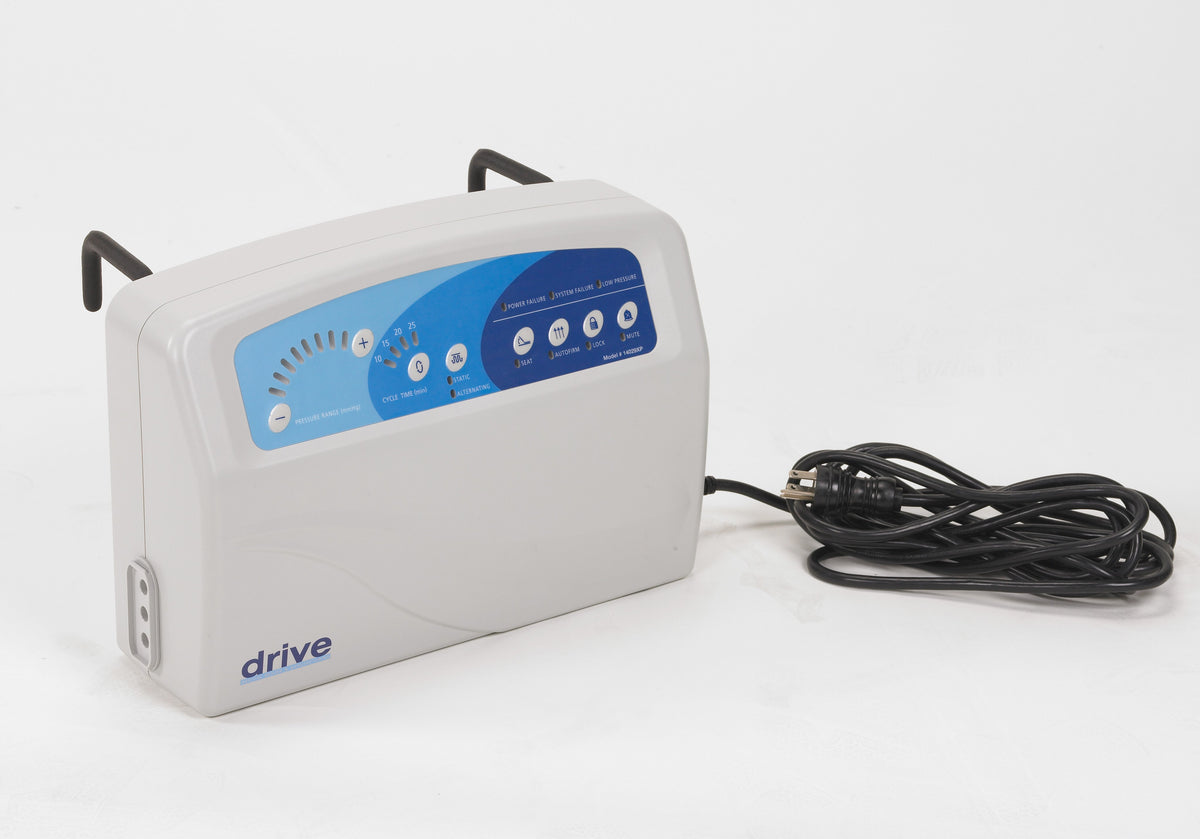

Auto-firm, seat inflate, lock-out, and three diagnostic alarms. A CPR valve dumps air quickly.
This 14030 is for someone who needs a 42-inch 10-inch Med-Aire Plus replacement at or under 600-lb. It is a weaker fit if the deck is 36, 48, 54, or 60-inch.
Width and capacity change with SKU. 14030 is 42-inch at 600-lb. 14048 is 48-inch at 750-lb. 14054 is 54-inch at 1000-lb. 14060 is 60-inch at 1000-lb.
| Specification | Detail |
|---|---|
| Weight Capacity | 600 lb |
| Brand | Drive Medical |
| Model | Med-Aire Plus 10 in Bariatric AP and LAL 14030 |
| Type | Bariatric alternating pressure and low air loss mattress replacement |
| Size | 42" W x 80" L x 10" H |
| Air Cells | 20 cell-on-cell 10 in cells with pillow feature |
| Cycle Time | 10, 15, 20, 25 minutes |
| Alarms | Visual and audible, air pressure, system, and power |
| Cover | Removable quilted nylon, fluid resistant |
| Warranty | 18 month limited |
| UPC | 822383111605 |
Affinity Home Medical is a local home-medical supplier in South Salt Lake. If you are matching a foam hospital mattress, a gel overlay, or a powered air system to a homecare bed, we can compare width, thickness, and pump type before you order.
Store pickup, local delivery, and nationwide shipping are available. Contact our team to confirm current availability.
Call 801-906-3900 or visit 3737 S State St, South Salt Lake, UT 84115.
No. This page is 14030, 42 by 80 by 10-inch at 600-lb. 14054 is the 54-inch 1000-lb SKU.
Yes, on that 42-inch sleep surface. See the Drive 15300LW if you still need the frame.
Yes. This model is available to see at the Salt Lake City showroom. Call first if you want us to pull it before you visit.
Call Affinity Home Medical at 801-906-3900, or visit 3737 S State St, South Salt Lake, UT 84115. We can compare foam replacements, overlays, and powered air systems before you order.
Shop this 14030 listing on this page when this model is the match. For help comparing foam, overlays, and powered air systems, call 801-906-3900 or visit 3737 S State St, South Salt Lake, UT 84115.
