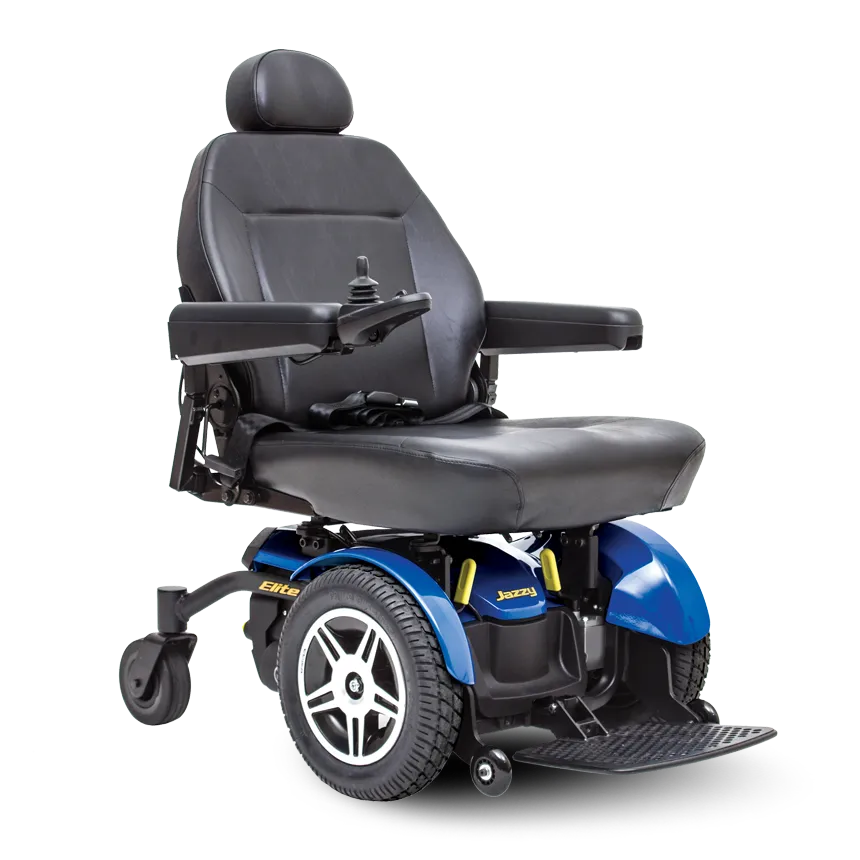

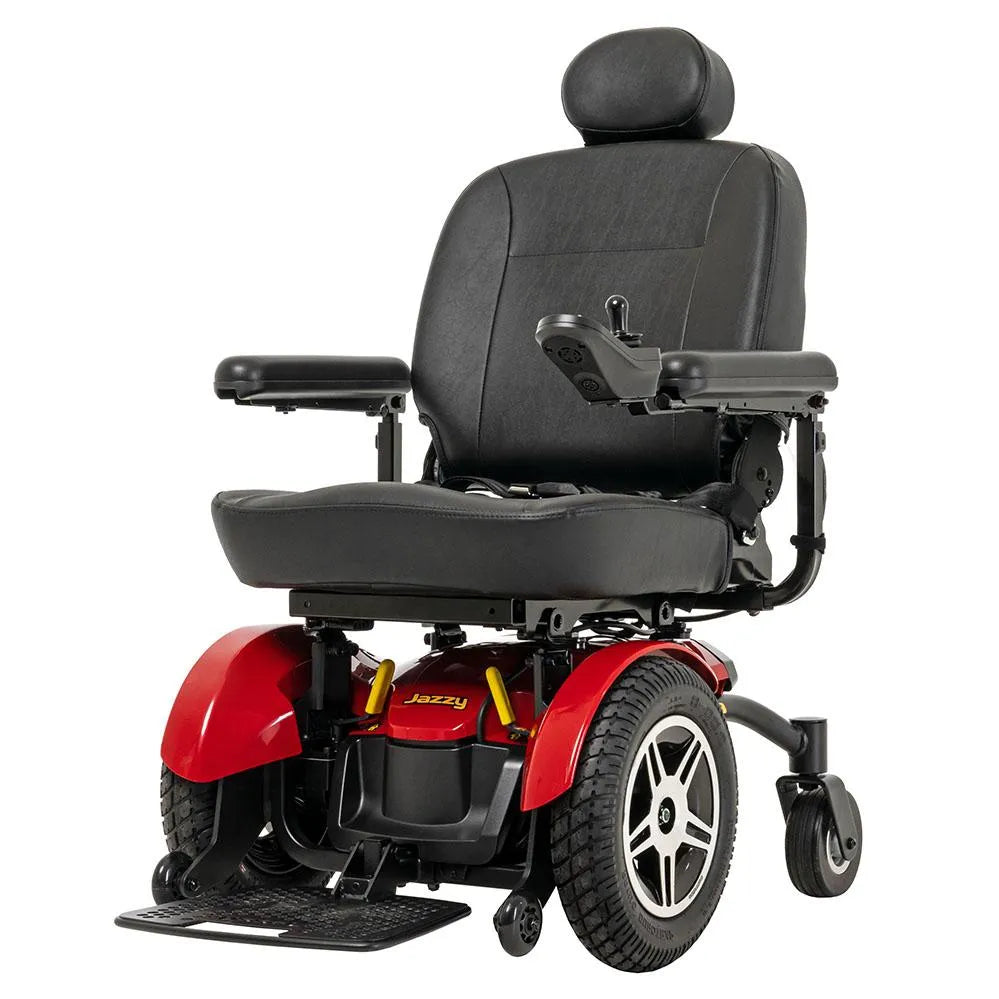

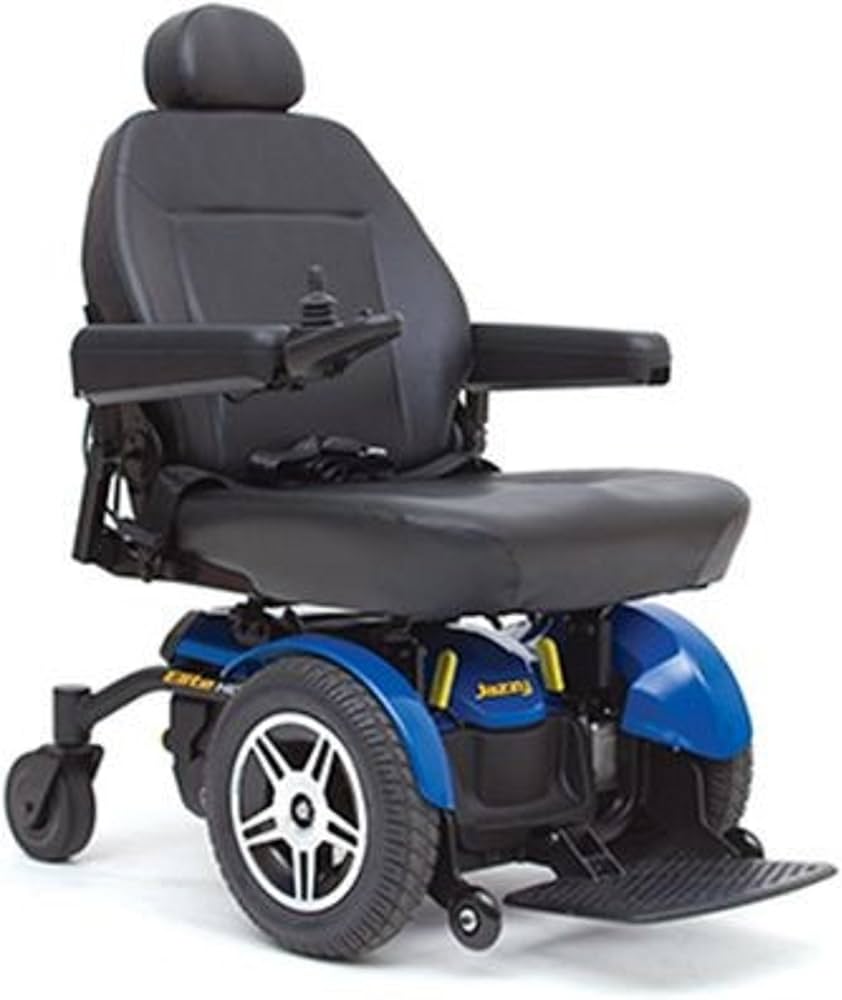

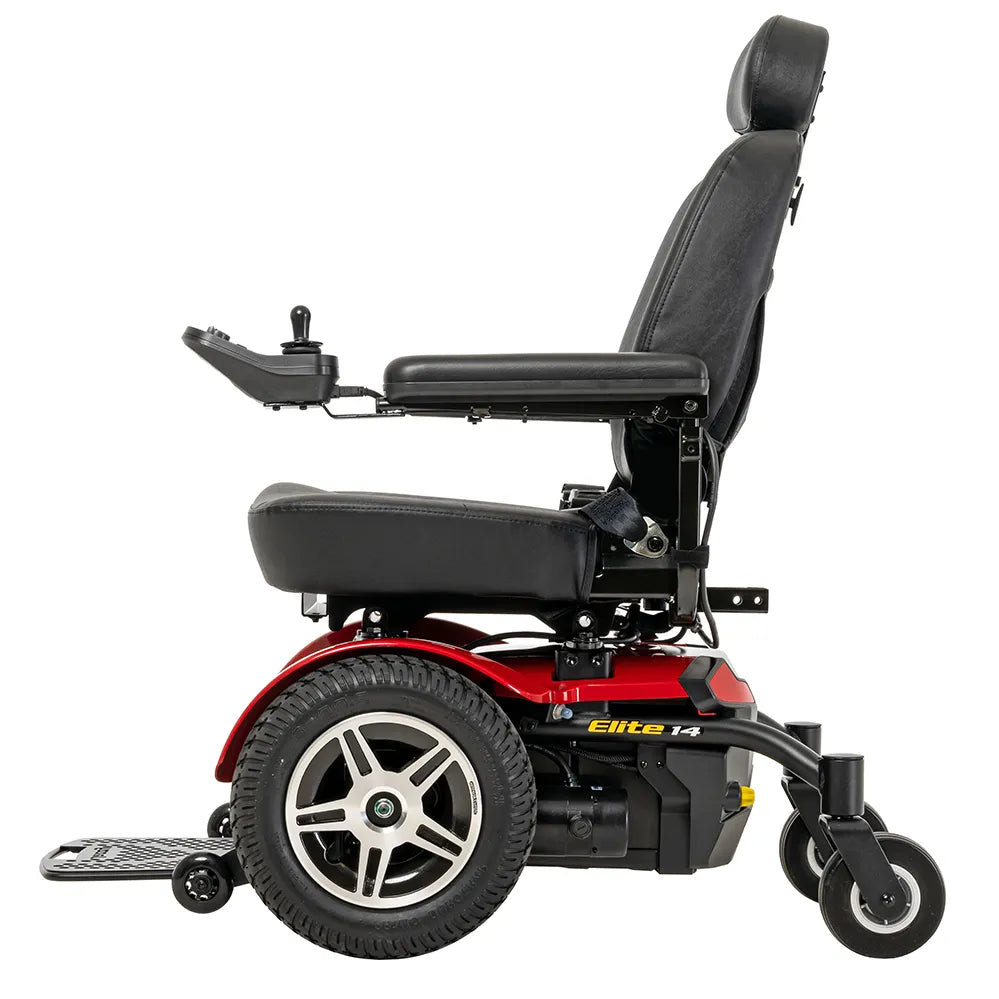

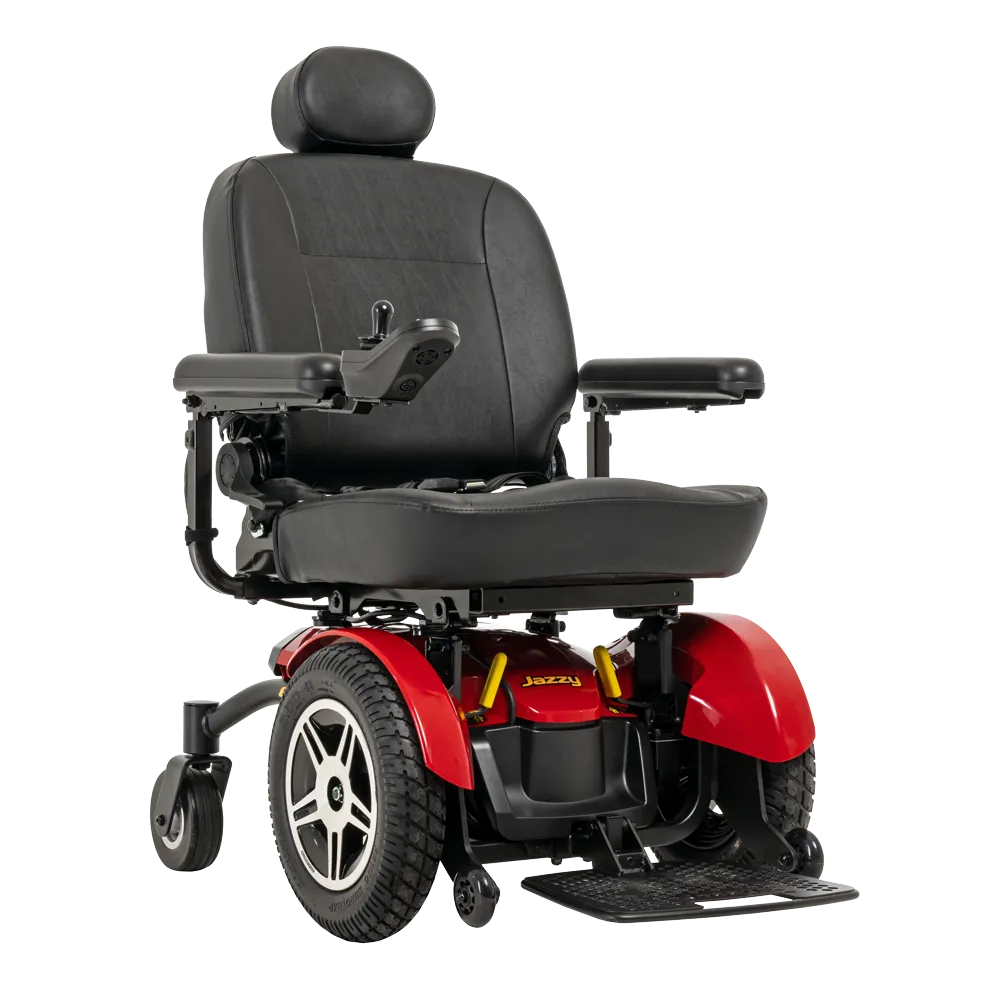

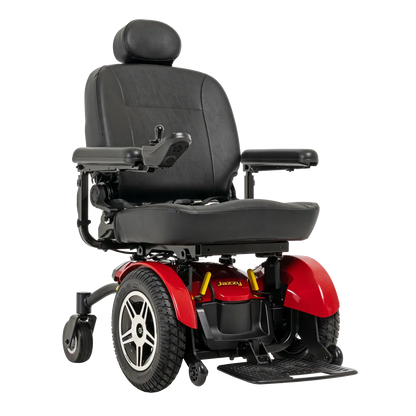

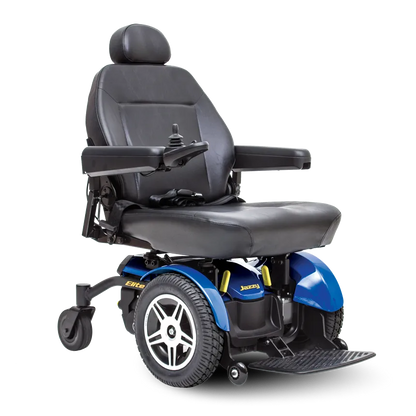

Jazzy Elite 14

Jazzy Elite 14 Specifications

Drive System: Front-wheel drive

Turning Radius: 24"

Top Speed: Up to 4.0 mph

Range per Charge:

Up to 9.8 miles with U1 batteries

Up to 14 miles with NF-22 batteries

Weight Capacity: 300 lbs

Ground Clearance: 3" at anti-tip wheels

Tires:

Drive Wheels: 14" solid

Casters: 6" solid (rear)

Suspension: In-line front-wheel drive for enhanced outdoor performance

Seat Options:

Depth-adjustable, reclining high-back seat

Widths from 16" to 20"

Electronics: 40A PG GC controller

Battery Type: U1 or NF-22 (2 required)

Battery Weight:

U1: ~25 lbs each

NF-22: ~38 lbs each

Base Weight: ~90 lbs (without batteries)

Total Weight: Approx. 168 lbs with U1 batteries

Overall Width: 24.25"

Overall Length: 40.25"

Warranty Information

Warranty5-Year Limited WarrantyFor five (5) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:

Main Frame

3-Year Limited WarrantyFor three (3) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:

Fixed-position Seat Post

13-Month Limited WarrantyFor thirteen (13) months from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:Electronic Assemblies, including:

Charger Assembly

Controller

Joystick

Main Frame Assemblies, including:

Metal Seat Framing

Other Components, including:

Electrical Harnesses

Accessories

Anti-tip Forks

Front Riggings

Bearings and Bushings

Motor/Gearbox Assembly

Brakes (Electronic Function ONLY)

Caster Forks

Front Rigging Mounting Brackets

13-Month WarrantyThe batteries are covered by a separate thirteen (13) month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.Note: Starting from date of product delivery, battery charge must be maintained to ensure warranty coverage. For mobility products which are not used regularly, or during periods of storage prior to and after purchase date, batteries must be charged once a week, for 24 hours. Failure to do so will void battery warranty.6-Month Warranty - Lithium Ion BatteriesLithium-Ion batteries are covered by a separate six (6) month warranty, provided by the battery manufacturer. Batteries are not guaranteed by Pride.Warranty ExclusionsThis warranty does not extend to those items which may require replacement due to normal wear and tear, including:

ABD Plastic Shrouds

Brake Pad

Motor Brushers

Tires and Tubes

Upholstery and Seating

Fuses/Bulbs

Circumstances beyond the control of Pride

Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized IN ADVANCE, by Pride Mobility Products

Repairs and/or modifications made to any part without specific consent from Pride

Exclusions also include components with damage caused by:

Contamination

Abuse, misuse, accident, or negligence

Battery fluid spillage or leakage

Commercial use or use other than normal

Improper operation, operation, maintenance, or storage
